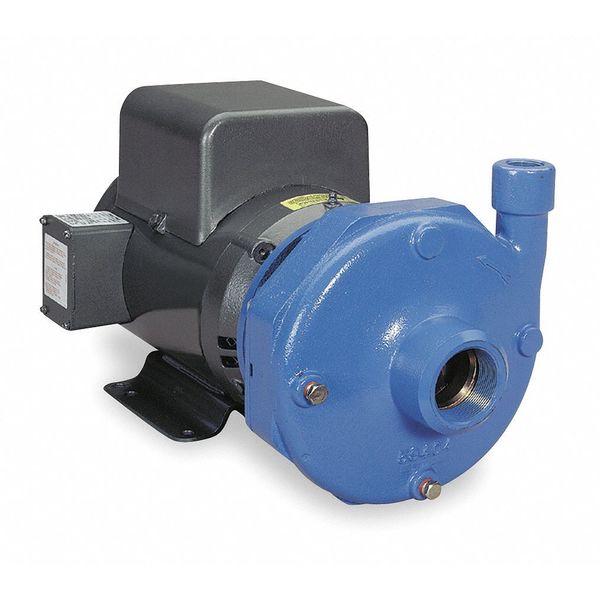

Centrifugal Pump, 10 HP, 149 ft. Max. Head
Original price
$4,082.81
-
Original price
$4,082.81
Original price
$4,082.81
$4,082.81
-
$4,082.81
Current price
$4,082.81
| HP - Pumps | 10 hp |
| Voltage - Pumps | 208 to 240/480V AC |
| Phase - Pumps | 3 |
| Housing Material - Pumps | Cast Iron |
| Max. Head | 149 ft |
| Max. Pressure - Pumps | 175 psi |
| Motor Enclosure - Pumps | Open Dripproof |
| Seal Material | Buna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts |
| Outlet | 2-1/2" NPT |
| Max. Pressure | 175 psi |
| Wetted Materials | 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N |
| Frame | 213Jm |
| Item | Centrifugal Pump |
| Voltage | 208-230/460VAC |
| Motor Type | JM |
| Amps | 25/12.5 |
| Motor Enclosure | ODP |
| Hz | 60 |
| Min. GPM @ Head | 100 @ 148 ft |
| Max. Liquid Temp. | 212 Degrees F |
| Phase | 3 |
| Item - Straight Centrifugal Pumps | Straight Centrifugal High Head Pump |
| Inlet | 3" NPT |
| Max. Case Pressure | 175 psi |
| Max. GPM @ Head | 290 @ 110 ft |
| Motor RPM | 3,500 RPM |
| Best Efficiency GPM @ Head | 220 @ 128 ft |
| HP | 10 |
| Best Efficiency Range GPM @ Head | 130 to 310 gpm @ 122 to 80 ft |
| Housing Material | Cast iron |
| Impeller Material | Bronze |
| Shaft Material | Stainless Steel |
| Compatible with Media Type | Water |
| Pump Housing Material | Cast Iron |
| Series | 3656 |
| Flow Rate @ 120 ft of Head (Maximum) | 250 gpm |
| Maximum RPM | 3,500 RPM |
| Flow Rate @ 60 ft of Head (Maximum) | Not Applicable |
| Mounting Orientation | Horizontal |
| Flow Rate @ 50 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 70 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 240 ft of Head (Maximum) | Not Applicable |
| Horsepower | 10 hp |
| Flow Rate @ 100 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 200 ft of Head (Maximum) | Not Applicable |
| Frequency | 60 Hz |
| Discharge Rotation | 90 Degrees Increments |
| Features | Back Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings |
| Nominal Voltage | 208-230/460V AC |
| Duty Cycle | Continuous |
| Flow Rate @ 140 ft of Head (Maximum) | 160 gpm |
| Maximum Media Temperature | 212 Degrees F |
| Best Efficiency Head | 128 ft |
| Best Efficiency Flow | 220 gpm |
| Standards | ANSI 61, NSF Certified |
| Seal Type | Mechanical Type 21 |
| Impeller Design | Closed |
| Pumping Application | Booster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation |
| Flow Rate @ 80 ft of Head (Maximum) | Not Applicable |
| Priming | Manual |
| Shut Off Pressure (Maximum) | 175 psi |
| For Use With Potable Systems | Yes |
| Flow Rate @ 15 ft of Head (Maximum) | Not Applicable |
| Maximum Flow Rate | 290 gpm |
| Flow Rate @ 5 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 20 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 10 ft of Head (Maximum) | Not Applicable |
| Maximum Feet of Head | 145 ft |
| Flow Rate @ 160 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 180 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 220 ft of Head (Maximum) | Not Applicable |
| Discharge Type | NPT |
| Intake Type | NPT |
| Flow Rate @ 1 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 260 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 300 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 30 ft of Head (Maximum) | Not Applicable |
| Wetted Material | 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic |
| Flow Rate @ 90 ft of Head (Maximum) | Not Applicable |
| Nameplate Voltage | 208-230/460V AC |
| Motor Frame Designation | 213JM |
| Minimum Flow Rate | 100 gpm |
| Motor Enclosure Type | ODP |
| Flow Rate @ 280 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 40 ft of Head (Maximum) | Not Applicable |
