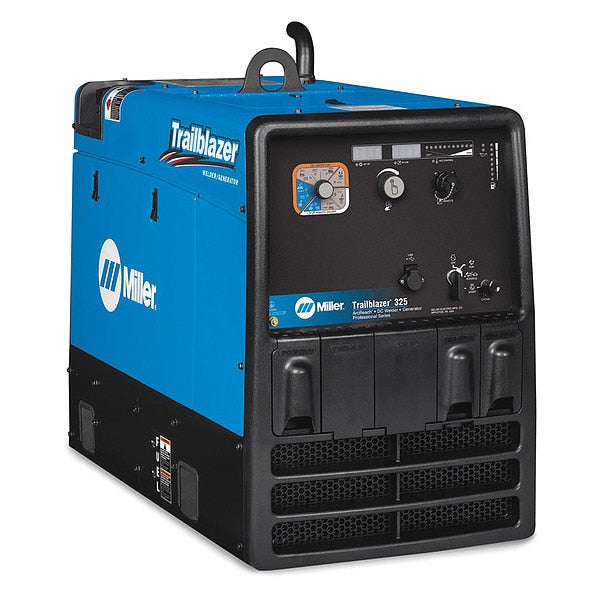

Engine Driven Welder, Trailblazer(R) 325 Series, Electric Start, 23 hp, Gas, 12, 000 W Peak
Sold out
Original price
$13,667.49
-
Original price
$13,667.49
Original price
$13,667.49
$13,667.49
-
$13,667.49
Current price
$13,667.49
| Promotion Restriction | Not eligible for promotion |
| Item | Engine-Driven Welder |
| Series | Trailblazer 325 |
| Start Type | Electric |
| Rated Output CC/DC | 325A @ 28V, 100% |
| Amperage Range | 10 to 325 |
| Continuous Auxiliary Power | 10,500 W |
| Peak Auxiliary Power | 12,000 W |
| Engine Brand | Kohler |
| HP | 23 hp |
| Fuel Type | Gas |
| Includes | Electric Fuel Pump, ArcReach(R) Technology |
| Phase | 1 |
| Generator Outlet Type | 14-50R, 5-20R |
| Fuel Tank Capacity | 12 gal |
| Generator Fuel Type | Gasoline |
| Welding Mode | CC/CV |
| TIG Welding Maximum Output Current | 325 A |
| Stick Welding Maximum Output Current | 325 A |
| Horsepower Range | 15 hp - 30 hp |
| Stick Welding Minimum Output Current | 20 A |
| Oil Capacity | 1 1/2 qt |
| MIG Welding Output @ Duty Cycle | 325 A @ 28 V, 100% |
| Sound Level | 65 dB (150 A), 73.5 dB (325 A) |
| TIG Welding Output @ Duty Cycle | 325 A @ 28 V, 100% |
| Rated Output at Duty Cycle (Stick) | 325 A @ 100% |
| Circuit Breaker | Yes |
| Generator Outlets | 20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R |
| Weight | 488 lb |
| Engine Model | Kohler CH730 |
| Max. Amperage Range (Stick) | Greater than 300 A |
| Polarity | DC |
| TIG Welding Minimum Output Current | 20 A |
| Fuel Tank Capacity Range | 10 gal - 20 gal |
| Stick Welding Output @ Duty Cycle | 325 A @ 28 V, 100% |
| Welder Type | Electric Fuel Pump |
| Horsepower | 24 hp |
| Model | 907797002 |
| brand-mfr model | MILLER ELECTRIC - 907797002 |
| Welder Model Type | Electric Fuel Pump |
| Process | Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW) |
