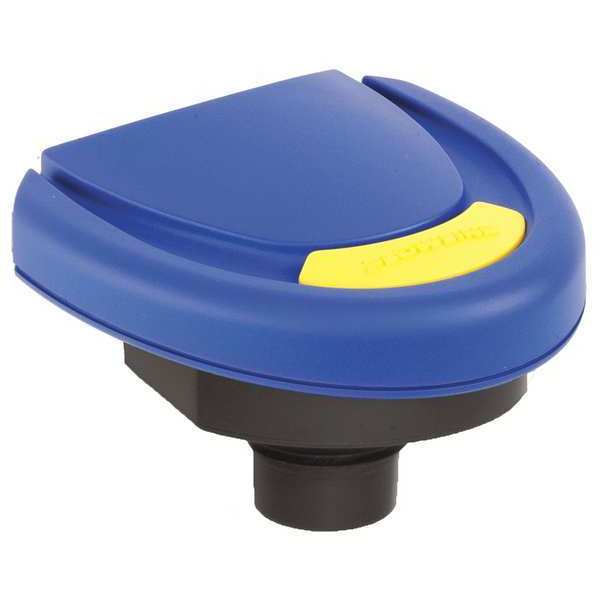

Ultrasonic Level Transmitter, 9.8 Ft
by FLOWLINE
Original price
$787.50
-
Original price
$787.50
Original price
$787.50
$787.50
-
$787.50
Current price
$787.50
| Material | PVDF |
| Item | Noncontact Ultrasonic Level Sensor |
| Mounting | 1 in NPT |
| Output | 4 to 20mA, 2-wire |
| Configuration | WebCal |
| Enclosure Material | Polycarbonate |
| Display | None |
| Gasket Material | Viton |
| Dead Band | 4 in |
| Accuracy | +/-0.2% of Range |
| Standards | CE Certified, cFMus Approved, RoHS |
| Input Voltage | 24V DC (loop) |
| Max. Pressure | 30 psi |
| Temp. Range | -4 Degrees to 140 Degrees F |
| Range | 117.6 in |
| Enclosure Rating | IP68 |
| Resolution | 0.019 in |
| Classification | General Purpose |
| Connection Type | NPT |
| Media Temperature - Minimum | -4 Degrees F |
| Output Voltage Range | 4 to 20mA |
| Voltage - Maximum | 24V DC |
| Output Wire Configuration | 2-Wire |
| Media Temperature - Maximum | 140 Degrees F |
| Spatial Resolution | 0.019 in |
| Display Type | None |
| Operating Pressure - Maximum | 30 psi |
| Operating Frequency | 100 kHz |
| For Media Type | Corrosive Liquid, Sticky/Waste Liquid |
