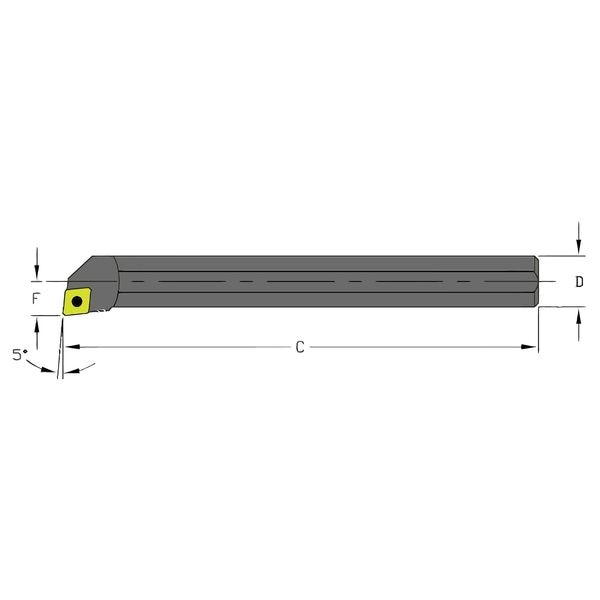

Indexable Boring Bar, S08M SCLCR3, 6 in L, High Speed Steel, 80 Degrees Diamond Insert Shape
Original price
$114.61
-
Original price
$114.61
Original price
$114.61
-
Original price
$114.61
Original price
Current price
$114.61
$114.61
-
$114.61
Current price
$114.61
| Mfr # | SCLCR3 |
| Item | Indexable Boring Bar |
| Min. Bore | 0.625" |
| Cutting Direction | Right Hand |
| Insert Shape | 80 Degrees Diamond |
| Shank Material | High Speed Steel |
| Style | Solid |
| ANSI Code | S08M SCLCR3 |
| Mounting Style | Screw Lock |
| Left/Right Hand | Right Hand |
| Insert Thickness | 0.1562" |
| Lead Angle | -5 Degrees |
| Cutting Edge Type | -5 Degrees |
| For Use With | CCMT 32.51 |
| Rake | Positive |
| Type | Turning |
| ANSI Number | S08M SCLCR3 |
| Inscribed Circle | 3/8" |
| Insert Holding Type | Screw On |
| Compatible Hardware | MTS-35 Insert Screw, T-15 Key |
| Number of Inserts | 1 |
| Insert Inscribed Circle | 3/8 in |
| Side Cutting Edge Angle | -5 Degrees |
| Insert Clearance Angle | 7 Degrees |
| Cutting Application | Boring |
| Head Material | Steel |
| Coolant Fed | Non-Coolant Through |
| Insert Style | CCMT |
| Center to Cutting Tip | 0.3440 in |
