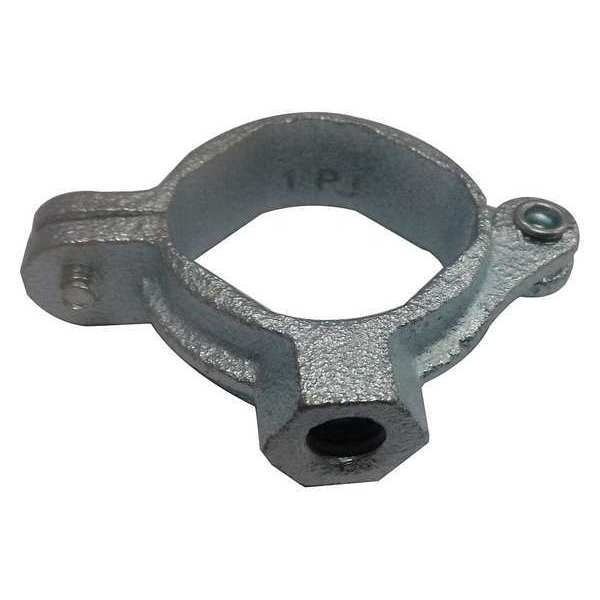

Split Ring Hanger, 3/4 In, Malleable Iron
Original price
$2.32
-
Original price
$2.32
Original price
$2.32
$4.64
$4.64
-
$4.64
Current price
$4.64
| Mfr # | 22FP58 |
| Max. Load (Lb.) | 180 lb |
| Standards | MSS SP-58, SP-69 |
| Item | Split-Ring Hanger |
| Material | Electro-Galvanized Iron |
| Metal Detectable | Yes |
| Description/Special Features | For Suspension of Stationary Non Insulated Pipe Lines |
| Type | MSS SP-58(Type 12) |
| Product Type | Split Ring Hanger |
| Maximum Operating Temperature | 200 Degrees F |
| Support Material Grade | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Includes Mounting Hardware | Yes |
| Bolt Material | Steel |
| Load Capacity | 180 lb |
| Included Insulation Thickness | Not Applicable |
| Hanger Material Grade | Not Applicable |
| Hanger Material | Iron |
| Support Material | Cast Iron |
| Pipe Center to Rod | 1 in |
| Hanger Type | Swivel Loop |
| Mount Type | Bolts/Screws |
| For Location | Indoor |
| Support Material Finish | Zinc-Plated |
| Closure | Bolts |
| Series | Not Applicable |
| For Use On | Stationary Non-Insulated Pipe |
| Vertical Adjustment | 3/4 in |
| Pipe Center to Hanger Top | 1 in |
| Minimum Operating Temperature | 0 Degrees F |
| Hanger Material Finish | Electro-Galvanized |
| Required Number of Threaded Rods | 1 |
| Cushion Material | Not Applicable |
| For Environment | Indoor Pipe System |
| For Insulated Pipe | No |
| Cushioned | No |
