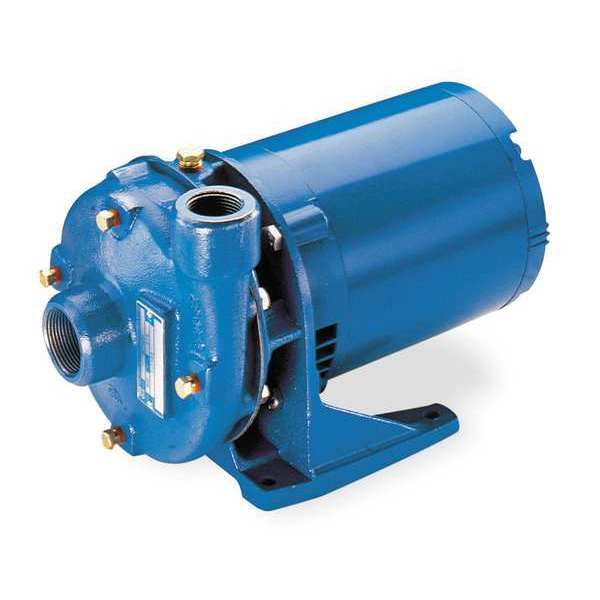

Centrifugal Pump, 2 HP, Max. Head 52 ft.
Original price
$2,146.38
-
Original price
$2,146.38
Original price
$2,146.38
$2,146.38
-
$2,146.38
Current price
$2,146.38
| HP - Pumps | 2 hp |
| Voltage - Pumps | 240 to 480V AC |
| Phase - Pumps | 3 |
| Housing Material - Pumps | Cast Iron |
| Max. Pressure - Pumps | 125 psi |
| Max. Head | 79 ft |
| Motor Enclosure - Pumps | Totally Enclosed Fan-Cooled |
| Seal Material | 316 Stainless Steel, Buna Elastomer, Carbon, Ceramic |
| Best Efficiency GPM @ Head | 66 gpm @ 70 ft |
| Amps | 4.4-4.2/2.1 |
| Housing Material | Cast iron |
| Phase | Three |
| Inlet | 1-1/2" NPT |
| Best Efficiency Range GPM @ Head | 30 to 80 gpm @ 52 to 31 ft |
| Voltage | 208-230/460VAC |
| Max. Case Pressure | 125 psi |
| Impeller Material | Bronze |
| Bearing Type | Ball |
| Duty | Continuous |
| Wetted Materials | 303 Stainless Steel, Bronze, Buna-N, Carbon, Cast Iron, Ceramic |
| Frame | 56J |
| Port Rotation | 45 Degrees Increments |
| Item - Straight Centrifugal Pumps | Straight Centrifugal High Flow Pump |
| Outlet | 1-1/4" NPT |
| Inlet Pressure | 55 psi |
| Item | Centrifugal Pump |
| Max. GPM @ Head | 96 @ 50 ft |
| Max. Liquid Temp. | 212 Degrees F |
| Impeller Type | Closed |
| Motor RPM | 3500 |
| Max. Pressure | 125 psi |
| Motor Enclosure | Totally Enclosed Fan Cooled (TEFC) |
| HP | 2 |
| GPM of Water @ 30 Ft. of Head | 80 |
| GPM of Water @ 40 Ft. of Head | 66 |
| Motor Type | Capacitor-Start |
| Hz | 60 |
| GPM of Water @ 50 Ft. of Head | 36 |
| Min. GPM @ Head | 20 @ 78 ft |
| Priming | Manual |
| Minimum Flow Rate | 36 gpm |
| Flow Rate @ 30 ft of Head (Maximum) | 80 gpm |
| Flow Rate @ 280 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 70 ft of Head (Maximum) | 78 gpm |
| Flow Rate @ 240 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 260 ft of Head (Maximum) | Not Applicable |
| Compatible with Media Type | Water |
| Motor Enclosure Type | TEFC |
| Horsepower | 2 hp |
| Flow Rate @ 120 ft of Head (Maximum) | Not Applicable |
| Best Efficiency Flow | 66 gpm |
| Flow Rate @ 40 ft of Head (Maximum) | 66 gpm |
| Flow Rate @ 60 ft of Head (Maximum) | 82 gpm |
| Pump Housing Material | Cast Iron |
| Maximum RPM | 3,500 RPM |
| Flow Rate @ 5 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 90 ft of Head (Maximum) | 59 gpm |
| Flow Rate @ 15 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 50 ft of Head (Maximum) | 36 gpm |
| Shaft Material | Stainless Steel |
| Flow Rate @ 1 ft of Head (Maximum) | Not Applicable |
| Features | Compact Design, Frame-Mounted Design |
| Seal Type | Mechanical |
| Discharge Type | NPT |
| Shut Off Pressure (Maximum) | 125 psi |
| Series | 3642 |
| Duty Cycle | Continuous |
| Maximum Flow Rate | 96 gpm |
| Nominal Voltage | 208-230/460V AC |
| Nameplate Voltage | 208-230/460V AC |
| Mounting Orientation | Horizontal, Vertical |
| Maximum Feet of Head | 118 ft |
| Impeller Design | Closed |
| Best Efficiency Head | 70 ft |
| For Use With Potable Systems | Yes |
| Motor Frame Designation | 56J |
| Flow Rate @ 100 ft of Head (Maximum) | 50 gpm |
| Flow Rate @ 160 ft of Head (Maximum) | Not Applicable |
| Wetted Material | 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic |
| Intake Type | NPT |
| Flow Rate @ 140 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 220 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 180 ft of Head (Maximum) | Not Applicable |
| Pumping Application | Booster Service, Jockey Pump Service, Liquid Transfer, Spraying Systems, Water Circulation |
| Flow Rate @ 80 ft of Head (Maximum) | 65 gpm |
| Flow Rate @ 20 ft of Head (Maximum) | 0 gpm |
| Flow Rate @ 300 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 200 ft of Head (Maximum) | Not Applicable |
| Flow Rate @ 10 ft of Head (Maximum) | Not Applicable |
| Discharge Rotation | 45 Degrees Increments |
| Frequency | 60 Hz |
| Maximum Media Temperature | 212 Degrees F |
