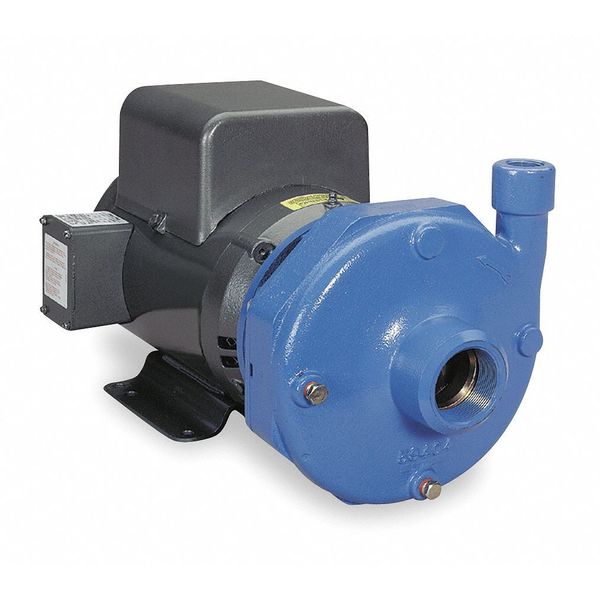

Centrifugal Pump, 10 HP, 170 ft. Max. Head
Original price
$0
Original price
$4,857.49
-
Original price
$4,857.49
Original price
Current price
$4,857.49
$4,857.49
-
$4,857.49
Current price
$4,857.49
- Mfr #: 5BF1L9G0
- Price For: Each HP: 10 Voltage: 208-230/460VAC Housing Material: Cast iron Amps: 23.6/11.8 Hz: 60 Max. GPM @ Head: 210 @ 80 ft. Max. Dia. Solids: 5/16" Best Efficiency Range GPM @ Head: 85 to 190 gpm @ 165 to 110 ft. Max. Liquid Temp.: 212 Degrees F Motor Enclosure: TEFC Motor Enclosure - Pumps: Totally Enclosed Fan-Cooled Best Efficiency GPM @ Head: 140 @ 145 ft.
- Item - Straight Centrifugal Pumps: Straight Centrifugal High Head Pump Max. Case Pressure: 175 psi Outlet Size - Pumps: 1-1/2" NPT Wetted Materials: 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N Frame: 215JM Motor RPM: 3500 Outlet: 1-1/2" NPT Phase - Pumps: 3 Max. Pressure - Pumps: 175 psi Seal Material: Buna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts HP - Pumps: 10
- Max. Head: 170 ft. Voltage - Pumps: 240/460VAC Phase: 3 Inlet Size - Pumps: 2" NPT Item: Centrifugal Pump Min. GPM @ Head: 50 @ 170 ft. Manufacturers Warranty Length: 1 yr. Inlet: 2" NPT Motor Type: JM Housing Material - Pumps: Cast Iron Max. Pressure: 175 psi Country of Origin (subject to change): United States
