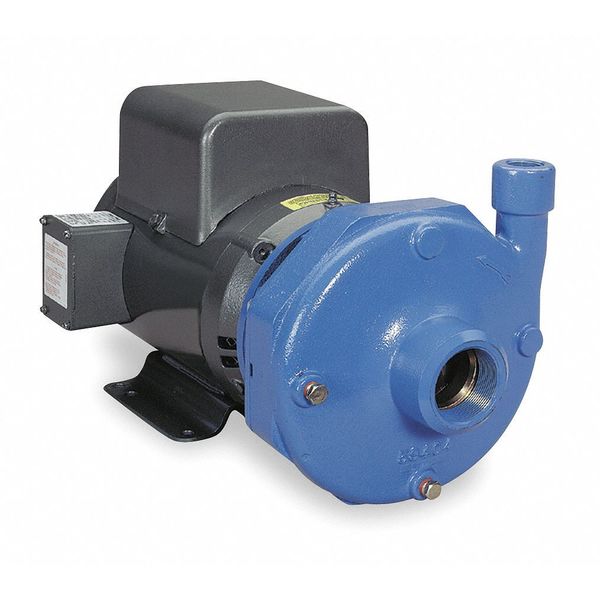

Centrifugal Pump, 15 HP, 260 ft. Max. Head
Original price
$0
Original price
$5,113.50
-
Original price
$5,113.50
Original price
Current price
$5,113.50
$5,113.50
-
$5,113.50
Current price
$5,113.50
- Mfr #: 5BF1MBB0
- Price For: Each Outlet: 1-1/2" NPT Housing Material: Cast iron Frame: 215JM Motor Type: JM Seal Material: Buna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts Housing Material - Pumps: Cast Iron HP: 15 Amps: 35/17.5 Inlet: 2" NPT Motor Enclosure - Pumps: Open Dripproof Outlet Size - Pumps: 1-1/2" NPT HP - Pumps: 15 Manufacturers Warranty Length: 1 yr.
- Phase - Pumps: 3 Max. Case Pressure: 175 psi Voltage - Pumps: 208 to 240/480VAC Max. Pressure: 175 psi Max. Head: 260 ft. Inlet Size - Pumps: 2" NPT Phase: 3 Item - Straight Centrifugal Pumps: Straight Centrifugal High Head Pump Max. Dia. Solids: 5/16" Min. GPM @ Head: 50 @ 260 ft. Wetted Materials: 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N Max. GPM @ Head: 255 @ 160 ft.
- Motor RPM: 3500 Best Efficiency GPM @ Head: 180 @220 ft. Item: Centrifugal Pump Max. Pressure - Pumps: 175 psi Voltage: 208-230/460VAC Hz: 60 Best Efficiency Range GPM @ Head: 105 to 235 gpm @ 250 to 180 ft. Max. Liquid Temp.: 212 Degrees F Motor Enclosure: ODP Country of Origin (subject to change): United States
