Why Pedestal Centrifugal Pumps Outperform Close-Coupled Units in High-Torque Industrial Applications

The Mechanical Advantage of Pedestal-Mounted Architecture

A motor that frequently burns out is rarely suffering from a motor defect. It is usually absorbing heat, vibration, and moisture that a properly isolated drive assembly would have kept at a distance. This separation is the key advantage of pedestal construction.

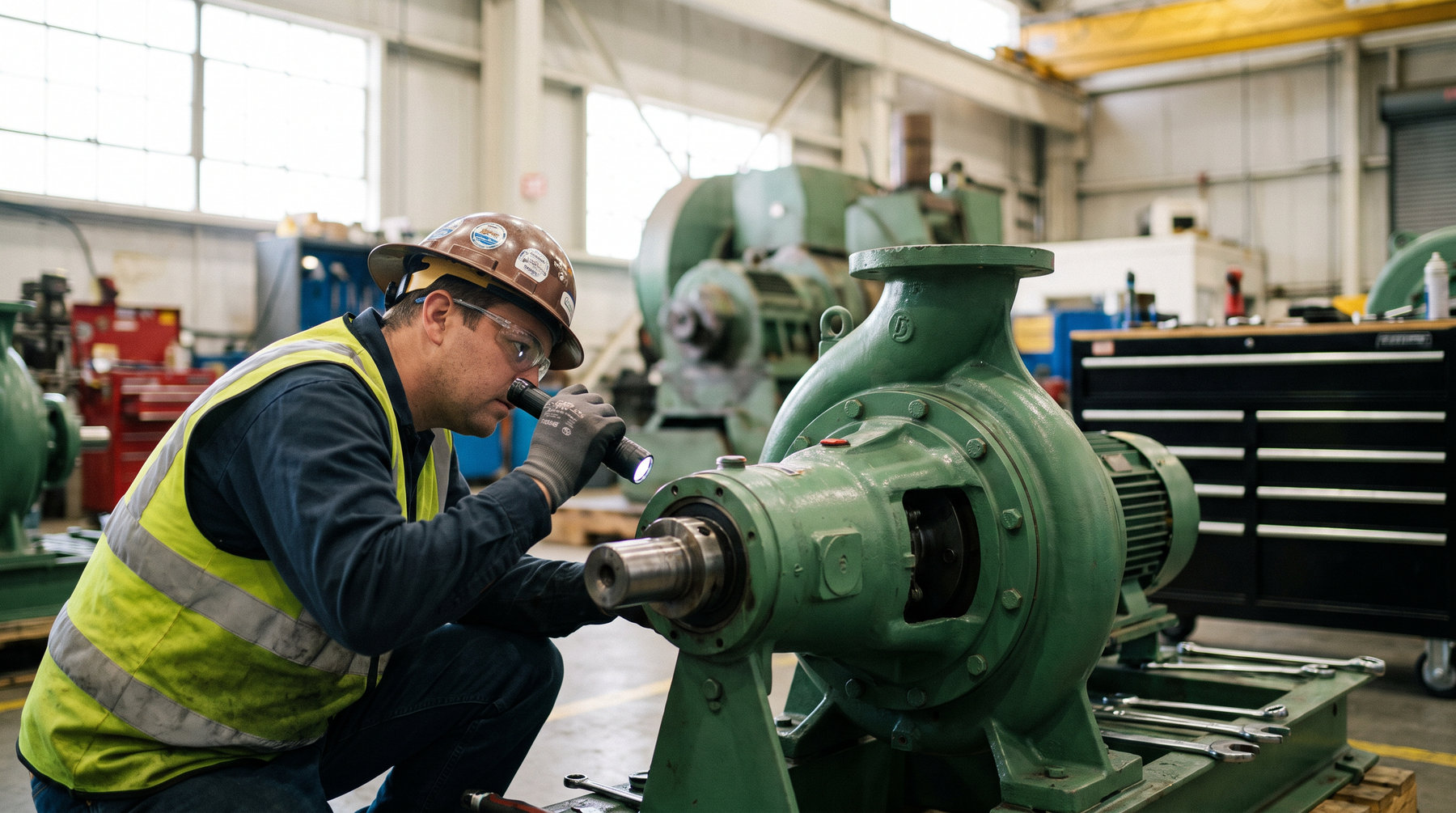

A pedestal drive places the impeller shaft in its own bearing housing, supported by dedicated bearings and connected to the prime mover through a flexible coupling. The motor bolts to a separate base plate, not to the pump casing. Close-coupled units, by contrast, extend the motor shaft directly into the wet end, making the motor a structural component of the pump.

That separation matters. A leaking seal on a close-coupled unit drains toward the motor endbell; on a pedestal unit it drains onto the base, where it is visible during a walkthrough and harmless to the windings. The flexible coupling absorbs minor angular and parallel offset, isolating the motor bearings from hydraulic thrust and pipe strain.

This is why a cooling tower circulation pump running continuous duty is so often specified as a pedestal unit, and why centrifugal pedestal pumps remain the default across heavy MRO environments where uptime is measured in quarters, not hours.

For industrial applications requiring reliable fluid transfer solutions, selecting the correct pump configuration is only the first step. Explore Contractor Supplies' Centrifugal Pumps collection to compare pump options designed for commercial, industrial, and maintenance environments.

Critical Parts of a Centrifugal Pedestal Pump System

Understanding the parts of centrifugal pump assemblies is what separates a twenty-minute seal swap from a full unit replacement. In a pedestal configuration, every wear component sits in a discrete, individually serviceable subassembly, which is precisely the point.

Impeller — converts rotational energy into velocity head. Vane wear and tip clearance loss show up first as reduced discharge pressure at unchanged amperage.
Volute or casing — converts velocity into pressure. Erosion here usually signals abrasive solids or sustained off-curve operation.
Bearing housing — the defining pedestal component. Houses the radial and thrust bearings that carry hydraulic loads the motor never sees.
Mechanical seal or packing — the primary consumable, and the most common source of unplanned downtime.
Shaft sleeve — a sacrificial hardened collar under the seal face. Replacing a sleeve costs a fraction of replacing a scored shaft.
Flexible coupling and guard — transmits torque while tolerating minor misalignment.

Never reinstall a mechanical seal against a grooved or pitted sleeve. The new seal will fail within weeks, and the second failure will be blamed on the part rather than the surface.

Contractors servicing agricultural and transfer units will recognize this architecture in a Hypro 9203C parts breakdown: the wear items are isolated, not embedded in the driver.

Matching Motor Design to Pump Torque Requirements

NEMA design letters describe torque and inrush characteristics, and they are the difference between a driver that starts a loaded pump cleanly and one that trips on every cold morning. Centrifugal loads demand low starting torque but rise steeply with speed, which shapes the standard selection logic.

"For centrifugal pump drives, designers typically select between Design B (most common) and Design A (high inrush, variable torque)... Design A motors may be legitimately specified when application torque requirements exceed Design B capabilities." — Industrial Monitor Direct

Design B is the workhorse: controlled locked-rotor current, adequate breakaway torque, and predictable behavior on across-the-line starters. Design A trades higher inrush for greater breakdown torque, which earns its place where a flooded suction line, high-viscosity coolant, or a long discharge column loads the shaft harder than a textbook curve suggests.

The pedestal mount is what makes this choice reversible. Because the driver connects through a coupling rather than a shared shaft, a Design B motor can be unbolted and replaced with a Design A unit without breaking a flange, draining a line, or disturbing the wet end. On a close-coupled pump, the same decision means buying a new pump.

Calculating Performance: Total Dynamic Head and Flow Rates

Every specification failure traces back to a head calculation someone skipped. Total dynamic head is the sum of static head, friction loss through pipe and fittings, and pressure head at the discharge point. A total dynamic head calculation that ignores elbows, strainers, and valve losses will produce a pump that runs far right of its best efficiency point, where radial loads spike and seals shorten their service life.

Oversizing is the costlier error. A pump forced to operate beyond its design flow suffers suction-side pressure drop, cavitation, and the pitting and bearing load that follow. Undersizing is at least obvious on day one.

Flow capacity: the Graymills TN30 series delivers 60 GPM, a range suited to industrial coolant handling and circulation duty.

Suction lift: self-priming pedestal models such as the AMT 2761-99 achieve a vertical lift of up to 20 feet.

Size against the calculated duty point, not the maximum figure on the curve. Confirm available NPSH exceeds required NPSH with margin, and verify that the selected driver meets the torque demand at that operating point rather than at shutoff.

The Industrial Maintenance Checklist for 2026

A disciplined centrifugal pump maintenance checklist transforms pedestal architecture from a design advantage into a measurable benefit.

Lubricate the bearing housing on schedule. Grease-lubricated pedestals generally need monthly attention; oil-bath units need level verification and periodic analysis. Over-greasing generates as much heat as under-greasing.
Verify coupling alignment quarterly. Dial indicator or laser alignment catches the parallel and angular offset that destroys bearings and elastomeric inserts. Recheck after any piping modification.
Inspect the mechanical seal for weeping or crystallization. Dried salt deposits on the gland face mean the seal is passing fluid. Address it before the sleeve scores.
Log motor amperage against the nameplate. Rising draw at constant discharge pressure points to mechanical binding, bearing degradation, or a fouled impeller.
Track bearing housing temperature and vibration. A trend line is worth more than a single reading; a housing that runs consistently warmer than its baseline is announcing a failure weeks in advance.

Record every reading against the same points each cycle. Trending data is what justifies a planned motor swap during a scheduled outage instead of an emergency one at 2 a.m.

Summary: Selecting the Right Pedestal Pump

The compact footprint of a close-coupled unit is a real benefit, but it is purchased with serviceability. In continuous-duty, high-torque industrial service, modularity pays that cost back repeatedly across the asset's life.

Serviceability scales with duty cycle. A pedestal unit lets a technician replace bearings, seals, sleeves, or the entire motor as independent line items, keeping the wet end and the piping undisturbed.
Motor flexibility is the pedestal's strategic advantage. Because the driver couples to the shaft rather than forming it, a facility can move between NEMA Design B and Design A motors as load conditions change, without re-specifying the pump.
Accurate head calculation determines longevity, not capacity. A pump selected at its true duty point runs near best efficiency, where radial loads, seal wear, and cavitation risk all stay low.
The bearing housing protects the motor. Maintaining lubrication, alignment, and temperature in the pedestal assembly stops mechanical failures before they propagate into the electrical side of the system.

Specify based on the failure mode you expect to service, not just the footprint you hope to save.

Optimizing Your Fluid Transfer Infrastructure

Modularity in the field is only useful when the replacement part is available. A pedestal pump that can accept a new motor in ninety minutes is ineffective if the correctly framed NEMA motor is on backorder for eight weeks. That makes the distributor relationship part of the reliability calculation, not an afterthought to it.

Sourcing from a supplier that carries both the mechanical and the electrical side of the system removes the coordination gap that stretches outages. Starters, overload relays, disconnects, and control components need to match the motor being installed — a Square D starter sized for the wrong design letter will nuisance-trip a properly specified pump indefinitely. Pump-end wear parts, couplings, seals, and sleeves belong on the same purchase order as the driver and its controls.
