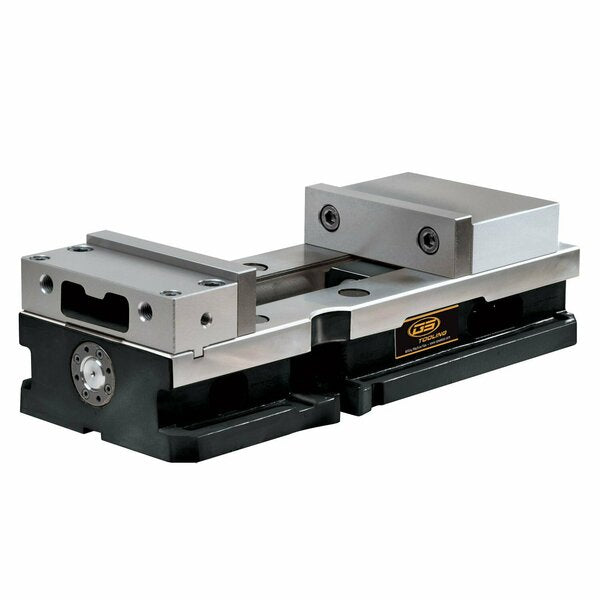

6" x 9.13" Precision Milling Machine Vises
by GS TOOLING
Contact for availability
Original price
$0.00
-
Original price
$0.00
Original price
$0.00
$0.00
$0.00
-
$0.00
Current price
$0.00
- Mfr #: 327320
- 【TOP QUALITY MATERIAL】 – 80,000 psi ductile iron (FCD-60) body with SC45C tempered steel Main Screw and Jaws for ultimate strength and rigidity; backed by a 10-Year Warranty
- 【CLAMP FORCE】 – A best in class 9,240 lbs
- Used for layout, set-up, checking heights, depths and setting angles
- 【HIGH ACCURACY】– Parallelism of body and squareness of jaw 0.0004”; bed height of 2.875” with tolerance of 0.0005”
- 【LOADED WITH ADDED FEATURES】 – Reduced jaw lift with 4-bolt fixed jaw design; spherical segment creates all-directional alignment of moveable jaw; allow more vises on the table with narrow body style and a spindle nut that does not protrude past the end of the body; stronger, more durable ball bearing system; strategically located chip evacuation holes maximize body strength
