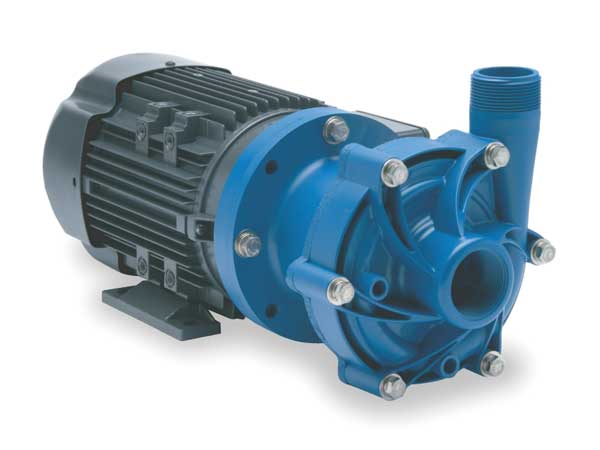

1/2 HP PP Magnetic Drive Pump 208-230/460V 1-1/2" FNPT

Finish Thompson — Magnetic Drive Pumps — 1/2 HP PP Magnetic Drive Pump 208-230/460V 1-1/2" FNPT

A practical Magnetic Drive Pumps by Finish Thompson intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Mounting: Horizontal
• Max. Specific Gravity: 1.2
• GPM of Water @ 9 Ft. of Head: 69 gpm
• Length: 17 19/64 in
• Manufacturer Part Number: DB7P-M227
• UPC: -

Product information

• UPC: -
• Country of Origin: United States
• Manufacturer Part Number: DB7P-M227

Dimensions

• Discharge Pipe Size: 1 1/2 in
• Intake Pipe Size: 1 1/2 in
• Manufacturers Warranty Length: 5 yr
• Length: 17 19/64 in
• Width: 7 1/2 in
• Height: 8 19/64 in
• Overall Height: 8.3 in
• Overall Width: 7.5 in
• Overall Length: 17.3 in

Details

• Nameplate Voltage: 208-230/460V AC
• Intake Pipe Type: FNPT
• Priming: Manual
• Discharge Pipe Type: MNPT
• Flow Rate @ 15 ft of Head (Maximum): 64 gpm
• Motor Mounting Type: Horizontal
• Chemical Compatibility: Deionized Water
• Flow Rate @ 9 ft of Head (Maximum): 69 gpm
• Flow Rate @ 18 ft of Head (Maximum): 58 gpm
• Mounting: Horizontal
• Max. Specific Gravity: 1.2
• GPM of Water @ 9 Ft. of Head: 69 gpm
• Motor Enclosure: Totally Enclosed Fan Cooled
• GPM of Water @ 6 Ft. of Head: 69 gpm
• Impeller Material: Polypropylene
• GPM of Water @ 24 Ft. of Head: 50 gpm
• GPM of Water @ 18 Ft. of Head: 58 gpm
• Application: Acids, Caustics, DI-Water, Plating Solutions
• GPM of Water @ 3 Ft. of Head: 69 gpm
• Series: DB7
• Full Load Amps: 1.70-1.65/.825
• Bearing Type: Radial, Thrust
• Motor Type: Induction
• Gasket Material: Viton
• Design: Centrifugal
• Operating Pressure (Maximum): 14.2 psi
• Full Load Current: 1.7-1.65/0.825 A
• Flow Rate @ 24 ft of Head (Maximum): 50 gpm
• Motor Speed (Maximum): 3,450 RPM
• Flow Rate @ 3 ft of Head (Maximum): 69 gpm

This Magnetic Drive Pumps is designed to support reliable operation in demanding environments.

Recommended for facility operations and routine servicing and a practical option for maintenance teams and procurement.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
