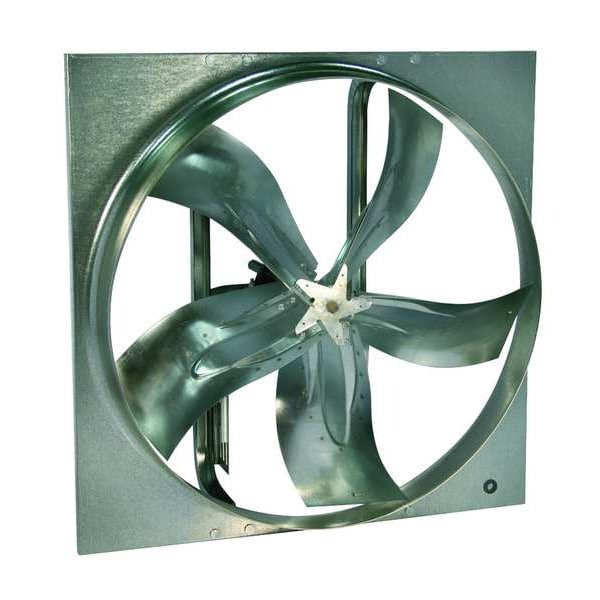

Med Duty Fan
by DAYTON
Contact for availability
Original price
$1,554.06
-
Original price
$1,554.06
Original price
$1,554.06
$3,178.02
$3,178.02
-
$3,178.02
Current price
$3,178.02
Availability:
Contact for availability
| Mfr # | 7M848 |
| Exhaust/Supply Fan Item | Exhaust Fan |
| Exhaust/Supply Fan Motor HP | 3 hp |
| Drive Package With Motor Included | Yes |
| Voltage | 208-230/460 |
| Motor Insulation | Class F |
| Motor Type | 3-Phase |
| Phase | 3 |
| Propeller Material | Galvanized Steel |
| Stock No. | 1AHA5 |
| Max. BHP | 3.45 hp |
| Fan RPM | 506 |
| CFM @ 0.000-In. SP | 32,605 cfm |
| Drive Package Included | Yes |
| Item | Exhaust Fan with Drive Package |
| Motorized Wall Galv. Shutter Stock No. | 3C731 |
| Number of Blades | 5 |
| CFM @ 0.375-In. SP | 22,873 cfm |
| Mounting Position | Horizontal or Vertical |
| Fan Voltage | 208-230/460V AC |
| CFM @ 0.125-In. SP | 30,246 cfm |
| CFM @ 0.250-In. SP | 27,492 cfm |
| Includes | Drive Package |
| Full Load Amps | 9.4-8.5/4.2 |
| Assembled/Unassembled | Unassembled |
| Motor RPM | 1,750 RPM |
| Aluminum Wall Shutter No. | 4FZJ2 |
| Bearing Type | Regreasable Pillow Block |
| Max. Inlet Temp. | 104 Degrees F |
| Intake Guard No. | 1WBU7 |
| Sones @ 0.250-In. SP @ 5 Ft. | 24 |
| Wall Collar Stock No. | 1WBV5 |
| Hz | 60 Hz |
| Frame Material | Steel |
| Sones @ 0.000-In. SP @ 5 Ft. | 27 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Weatherhood No. | 1WBW4 |
| Frequency | 60 Hz |
| Maximum Inlet Temperature | 104 Degrees F |
| Guard Type | None |
| Exhaust Airflow @ 0.000 in SP | 32,605 cfm |
| Motor Horsepower | 3 hp |
| Maximum Noise Level @ 0.000 in SP @ 5 ft | 0 to 30 sones |
| Drive Type | Belt Drive |
| Number of Fans | 1 |
| Full Load Current | 8.4 A |
| Blade Material | Steel |
| Nominal Voltage | 230/460V AC |
| Includes Dehumidistat | No |
| Standards | AMCA, UL/cUL |
| Noise Level @ 0.000 in SP @ 5 ft | 27 sones |
| Motor Enclosure Design | Totally Enclosed Fan Cooled (TEFC) |
| Number of Shutters | 0 |
| Motor Speed | 1,765 RPM |
| Nameplate Voltage | 230/460V AC |
| Motor Speed Range | 1601 to 1800 RPM |
| Maximum Airflow | 32,605 cfm |
| Vent Design | Ductless |
| Maximum Noise Level | 27 sones |
| Assembled | Unassembled |
| Includes Motor | Yes |
| Blade Finish | Galvanized |
| Square Opening Required | Greater than 30 in |
| Mounting Orientation | Horizontal, Vertical |
| Noise Level @ 0.125 in SP @ 5 ft | 25 sones |
| Number of Speeds | 1 |
| Fan Style | Panel |
| Exhaust Airflow @ 0.375 in SP | 22,873 cfm |
| Exhaust Airflow @ 0.125 in SP | 30,246 cfm |
| Ventilation Type | Exhaust |
| Maximum Exhaust Airflow @ 0.000 in SP | 30,001 to 40,000 cfm |
| Speed Controllable | No |
| Exhaust Airflow @ 0.250 in SP | 27,492 cfm |
| Includes Grill | No |
| Enclosure Design | Totally Enclosed Motor |
