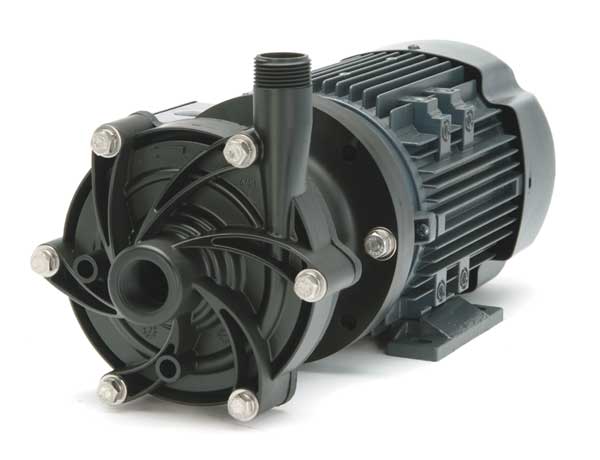

1/2 HP PVDF Magnetic Drive Pump 115/208-230V 1" FNPT

Finish Thompson — Magnetic Drive Pumps — 1/2 HP PVDF Magnetic Drive Pump 115/208-230V 1" FNPT

This Magnetic Drive Pumps from Finish Thompson supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• GPM of Water @ 9 Ft. of Head: 37 gpm
• Motor Enclosure: Totally Enclosed Fan Cooled
• Design: Centrifugal
• Length: 17 13/32 in
• Manufacturer Part Number: DB6V-T-M226
• UPC: -

Product information

• Country of Origin: United States
• Manufacturer Part Number: DB6V-T-M226
• UPC: -

Dimensions

• Overall Width: 7.5 in
• Overall Length: 17.4 in
• Overall Height: 8.3 in
• Manufacturers Warranty Length: 5 yr
• Length: 17 13/32 in
• Width: 7 1/2 in
• Height: 8 19/64 in
• Intake Pipe Size: 1 in
• Discharge Pipe Size: 1 in

Details

• GPM of Water @ 24 Ft. of Head: 23 gpm
• Flow Rate @ 9 ft of Head (Maximum): 37 gpm
• Flow Rate @ 15 ft of Head (Maximum): 34 gpm
• Flow Rate @ 18 ft of Head (Maximum): 31 gpm
• Operating Pressure (Maximum): 14.2 psi
• Flow Rate @ 6 ft of Head (Maximum): 39 gpm
• Nameplate Voltage: 115/208-230V AC
• Intake Pipe Type: FNPT
• Viscosity (Maximum): 100 cps
• Flow Rate @ 24 ft of Head (Maximum): 23 gpm
• Priming: Manual
• Horsepower (Maximum): 1/2 hp
• Feet of Head (Maximum): 33 ft
• GPM of Water @ 9 Ft. of Head: 37 gpm
• Motor Enclosure: Totally Enclosed Fan Cooled
• Design: Centrifugal
• Motor Type: Induction
• GPM of Water @ 15 Ft. of Head: 34 gpm
• Mounting: Horizontal
• Max. Specific Gravity: 1.6
• Full Load Amps: 7.6/3.80-3.80
• Series: DB6
• Application: Acids, DI Water, Plating Solutions, Sodium Hypochlorite
• GPM of Water @ 3 Ft. of Head: 39 gpm
• Max. Viscosity: 100 cps
• Gasket Material: Viton
• Impeller Material: PVDF
• GPM of Water @ 18 Ft. of Head: 31 gpm

This Magnetic Drive Pumps is selected for dependable day-to-day use.

Recommended for facility operations and routine servicing and a practical option for maintenance teams and procurement.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
