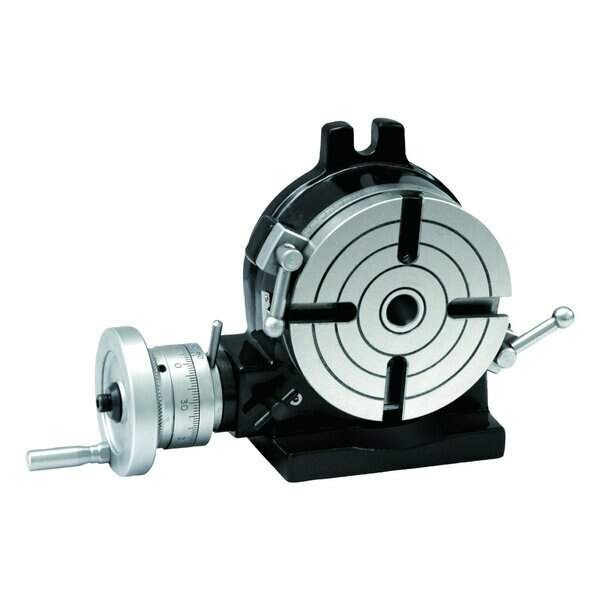

5 in. Horizontal/Vertical Rotary Table

HHIP Indexable Tool

In the Indexable Tools category, this indexable tool supports consistent performance for routine use.

Designed for consistent results in routine installation and service tasks.

Typical use cases

• Renovations and modernization projects
• Standardization across multiple units
• Reliable stocking for recurring work

Quick specs

• Item: HHIP 6 in. Horizontal/Vertical Rotary Table All rotary tables are precision ground. Low profile design. Worm gear is easily disengaged for free rotation. 10 second vernier reading. Graduated 360 degrees. All rotary table parts are strategically positioned for easy access. The one piece worm and shaft are hobbed from a solid alloy steel. Center hole is 2MT. Vertical center height is 3-5/8 in.. Horizontal overall height is 3.3 in.. Vertical overall height is 7 in.. 4 t-slots. T-slot width is 7/16 in.. One rotation of handle equals 4 degrees on the collar. 21 lbs.

Details

• Item: HHIP 6 in. Horizontal/Vertical Rotary Table All rotary tables are precision ground. Low profile design. Worm gear is easily disengaged for free rotation. 10 second vernier reading. Graduated 360 degrees. All rotary table parts are strategically positioned for easy access. The one piece worm and shaft are hobbed from a solid alloy steel. Center hole is 2MT. Vertical center height is 3-5/8 in.. Horizontal overall height is 3.3 in.. Vertical overall height is 7 in.. 4 t-slots. T-slot width is 7/16 in.. One rotation of handle equals 4 degrees on the collar. 21 lbs.

Dimensions

Not available.

Product Information

• Manufacturer Part Number: 3906-2305
• UPC: 769053112343
• Brand: Hhip

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
