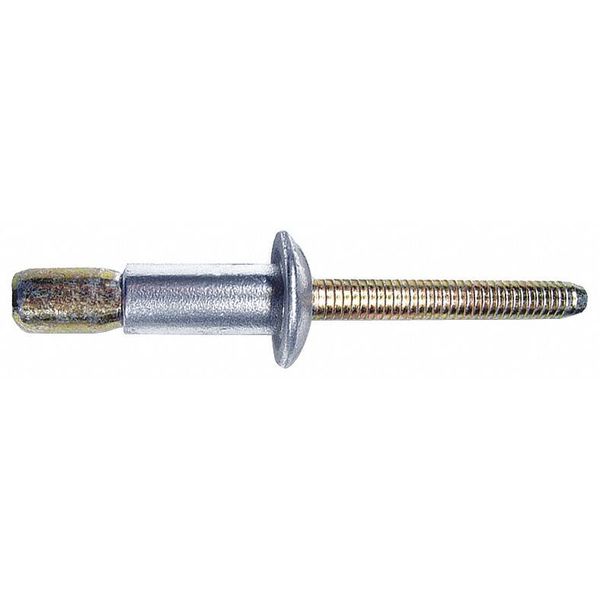

Blind Rivet, Truss Head, 3/16 in Dia., Aluminum Body, 25 PK

MAGNA-LOK — Blind Rivets — Blind Rivet, Truss Head, 3/16 in Dia., Aluminum Body, 25 PK

This Blind Rivets from MAGNA-LOK supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Finish: Plain
• Body Material: Aluminum
• System of Measurement: Inch
• Overall Length: 1 55/64 in
• Manufacturer Part Number: MGLT-B6-7-PKT
• UPC: -

Product information

• Manufacturer Part Number: MGLT-B6-7-PKT
• UPC: -
• Country of Origin: United States

Dimensions

• Overall Length: 1 55/64 in
• Shank Diameter: 0.1875 in
• Maximum Hole Diameter: 0.201 in
• Maximum Material Thickness: 7/16 in
• Minimum Hole Diameter: 0.191 in
• Head Diameter: 1/2 in
• Minimum Material Thickness: 7/32 in
• Rivet Diameter: 3/16 in
• Body Length: 37/64 in
• Head Height: 0.825
• Hole Size: .191-.201
• Head Dia.: .5

Details

• Mandrel Material: Aluminum
• Grip Range: 0.214 in to 0.437 in
• System of Measurement: Inch
• Single Shear Strength (Lbs.): 600 lb
• Blind Rivet Type: Open End
• Tensile Strength (Lb.): 500 lb
• Features: Flush Pinbreak, Internal Pin Locking Mechanism
• Tensile Strength: 500 lb
• Manufacturer Location: Made in USA*
• Shear Strength: 600 lb
• Finish: Plain
• Material Grade/Class: IFI-114-11
• For Use With: 6CNW9, 6CNX1, 6CNX2, 6NCY1
• Item: Blind Rivet
• Head Type: Dome
• Body Material: Aluminum

This Blind Rivets is a practical option for maintenance teams and procurement.

Recommended for planned maintenance programs and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
