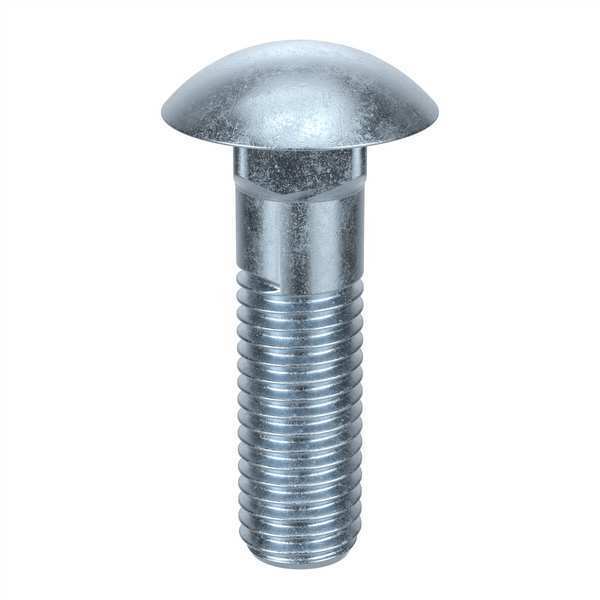

Carriage Bolt, 1/4-20, 5/8 in., PK100

CONTRACTOR SELECT — Carriage Bolts — Carriage Bolt, 1/4-20, 5/8 in., PK100

This Carriage Bolts from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• System of Measurement: Inch
• Grade: A
• Material Grade: Grade A
• Thread Size: 1/4"-20
• Manufacturer Part Number: U08305.025.0062
• UPC: -

Product information

• Country of Origin: Multiple
• Manufacturer Part Number: U08305.025.0062
• UPC: -

Dimensions

• Maximum Head Height: 9/64 in
• Minimum Head Diameter: 9/16 in
• Minimum Neck Height: 1/8 in
• Minimum Head Height: 1/8 in
• Maximum Neck Width: 17/64 in
• Neck Width: 1/4 in
• Maximum Neck Height: 5/32 in
• Maximum Head Diameter: 19/32 in
• Minimum Neck Width: 1/4 in
• Thread Size: 1/4"-20
• Fastener Length: 5/8 in
• Neck Height: 9/64 in
• Head Dia.: 0.563 in to 0.594 in
• Drill Size: 1/4 in
• Square Height: 0.125 in to 0.156 in
• Head Height: 9/64 in
• Square Width: 0.245 in to 0.260 in
• Screw Size: 1/4 in
• Head Width: 37/64 in

Details

• Meets/Exceeds: ASME B18.5
• Tensile Strength: 74,000 psi
• Type: Carriage Bolt
• Material Grade: Grade A
• Carriage Bolt Type: Carriage Bolt
• System of Measurement: Inch
• Grade: A
• Fastener Industry Standards: ASME B18.5
• Head Type: Round
• Fastener Thread Type: UNC (Coarse)

This Carriage Bolts is intended for professional buyers focused on durability and uptime.

Recommended for production support and bench work and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
