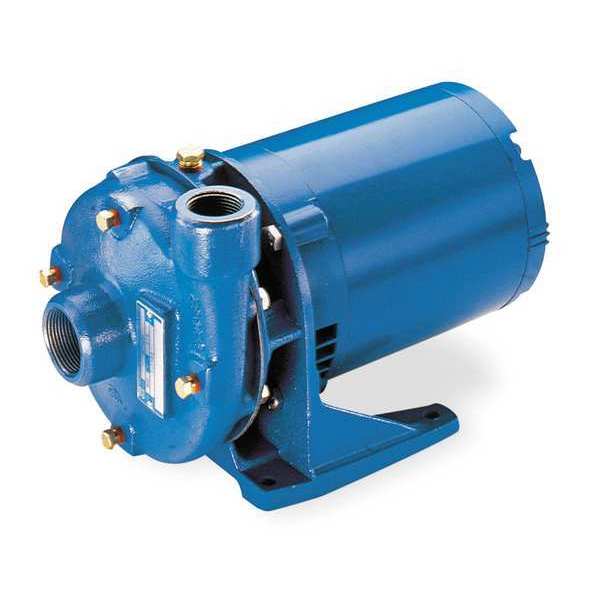

Cast Iron 1 HP Centrifugal Pump 115/230V

Goulds Water Technology — Straight Centrifugal High Head Pumps — Cast Iron 1 HP Centrifugal Pump 115/230V

Goulds Water Technology Straight Centrifugal High Head Pumps built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Motor Type: Capacitor-Start
• Inlet: 1-1/4" NPT
• Max. Case Pressure: 125 psi
• Length: 15 5/8 in
• Manufacturer Part Number: 1BF21012
• UPC: -

Product information

• UPC: -
• Country of Origin: United States
• Manufacturer Part Number: 1BF21012

Dimensions

• Compatible Discharge Pipe Size: 1 in
• Inlet Size - Pumps: 1-1/4 in NPT
• Outlet Size - Pumps: 1 in NPT
• Width: 8 7/8 in
• Max. Dia. Solids: 1/16 in
• Manufacturers Warranty Length: 1 yr
• Length: 15 5/8 in
• Height: 9 in
• Compatible Intake Pipe Size: 1 1/4 in
• Solid Diameter (Maximum): 0.06 in
• Overall Height: 8.2 in
• Manufacturer Warranty Length: 1 yr
• Overall Width: 6.7 in
• Overall Length: 17.3 in

Details

• Best Efficiency Head: 65 ft
• Duty Cycle: Continuous
• Priming: Manual
• Seal Type: Mechanical
• Maximum Flow Rate: 50 gpm
• Discharge Type: NPT
• Shut Off Pressure (Maximum): 125 psi
• Maximum Feet of Head: 85 ft
• Motor Type: Capacitor-Start
• Inlet: 1-1/4" NPT
• Max. Case Pressure: 125 psi
• Inlet Pressure: 55 psi
• Seal Material: 316 Stainless Steel, Buna Elastomer, Carbon, Ceramic
• GPM of Water @ 70 Ft. of Head: 27
• GPM of Water @ 60 Ft. of Head: 36
• GPM of Water @ 50 Ft. of Head: 42
• Wetted Materials: 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
• Max. Pressure: 125 psi
• Bearing Type: Ball
• Pump Housing Material: Cast Iron
• Compatible with Media Type: Water
• Maximum RPM: 3,500 RPM

This Straight Centrifugal High Head Pumps is intended for professional buyers focused on durability and uptime.

Recommended for inventory replenishment and standardization and a practical option for maintenance teams and procurement.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
