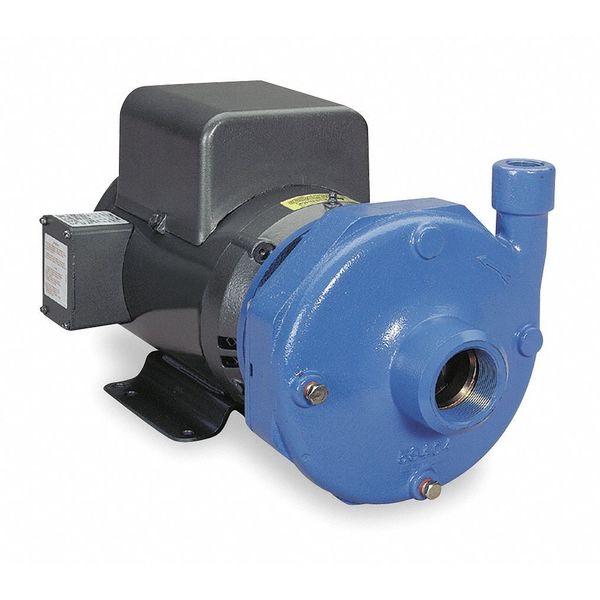

Cast Iron 3 HP Centrifugal Pump 115/208-230V

Goulds Water Technology — Straight Centrifugal High Head Pumps — Cast Iron 3 HP Centrifugal Pump 115/208-230V

Goulds Water Technology Straight Centrifugal High Head Pumps built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• GPM of Water @ 90 Ft. of Head: 60
• HP: 3
• Item: Centrifugal Pump
• Length: 27 in
• Manufacturer Part Number: 9BF1H4G0
• UPC: -

Product information

• Country of Origin: United States
• Manufacturer Part Number: 9BF1H4G0
• UPC: -

Dimensions

• Height: 9 in
• Max. Dia. Solids: None
• Length: 27 in
• Overall Length: 24.7 in
• Manufacturer Warranty Length: 1 yr
• Compatible Intake Pipe Size: 2 in
• Overall Height: 10.2 in
• Overall Width: 8.6 in
• Compatible Discharge Pipe Size: 1 in
• Inlet Size - Pumps: 2 in NPT
• Outlet Size - Pumps: 1 in NPT
• Width: 10 5/16 in
• Manufacturers Warranty Length: 1 yr

Details

• Outlet: 1" NPT
• Best Efficiency Range GPM @ Head: 40 to 70 gpm @ 80 to 110 ft
• Phase: Single
• Frame: 182
• Bearing Type: Ball
• Horsepower: 3 hp
• Pumping Application: Booster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation
• Motor Frame Designation: 182JM
• Pump Housing Material: Cast Iron
• Flow Rate @ 100 ft of Head (Maximum): 60 gpm
• Frequency: 60 Hz
• Nameplate Voltage: 115/208-230V AC
• Priming: Manual
• Intake Type: NPT
• GPM of Water @ 90 Ft. of Head: 60
• HP: 3
• Item: Centrifugal Pump
• GPM of Water @ 100 Ft. of Head: 50
• Inlet Pressure: 100 psi
• Max. Pressure: 48 psi
• Inlet: 2" NPT
• Motor Enclosure: Totally Enclosed Fan Cooled

This Straight Centrifugal High Head Pumps is a practical option for maintenance teams and procurement.

Recommended for facility operations and routine servicing and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
