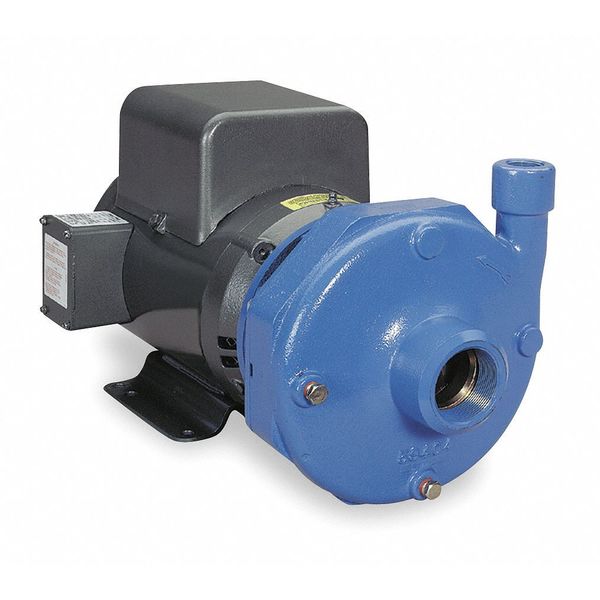

Cast Iron 5 HP Centrifugal Pump 208-230V

Goulds Water Technology — Straight Centrifugal High Head Pumps — Cast Iron 5 HP Centrifugal Pump 208-230V

Designed for professional use, this Goulds Water Technology Straight Centrifugal High Head Pumps helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Best Efficiency GPM @ Head: 120 @ 105 ft
• Phase: Single
• GPM of Water @ 80 Ft. of Head: 153
• Length: 20 5/16 in
• Manufacturer Part Number: 3BF1J4B0
• UPC: -

Product information

• UPC: -
• Country of Origin: United States
• Manufacturer Part Number: 3BF1J4B0

Dimensions

• Overall Length: 24.5 in
• Overall Height: 9 in
• Overall Width: 8.6 in
• Manufacturer Warranty Length: 1 yr
• Compatible Discharge Pipe Size: 1 1/2 in
• Inlet Size - Pumps: 2 in NPT
• Outlet Size - Pumps: 1-1/2 in NPT
• Height: 9 in
• Length: 20 5/16 in
• Manufacturers Warranty Length: 1 yr
• Max. Dia. Solids: 5/16 in
• Width: 12 1/4 in
• Solid Diameter (Maximum): 0.31 in
• Compatible Intake Pipe Size: 2 in

Details

• GPM of Water @ 90 Ft. of Head: 142
• Max. Case Pressure: 175 psi
• Inlet Pressure: 100 psi
• GPM of Water @ 100 Ft. of Head: 130
• Intake Type: NPT
• Maximum Feet of Head: 135 ft
• Specific Gravity (Maximum): 1
• Wetted Material: 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
• Maximum Media Temperature: 212 Degrees F
• Duty Cycle: Continuous
• Minimum Flow Rate: 130 gpm
• Maximum Flow Rate: 170 gpm
• For Use With Potable Systems: Yes
• Pumping Application: Booster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation
• Standards: ANSI 61, NSF Certified
• Discharge Rotation: 90 Degrees Increments
• Best Efficiency GPM @ Head: 120 @ 105 ft
• Phase: Single
• GPM of Water @ 80 Ft. of Head: 153
• Impeller Type: Closed

This Straight Centrifugal High Head Pumps is designed to support reliable operation in demanding environments.

Recommended for maintenance and repair workflows and a practical option for maintenance teams and procurement.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
