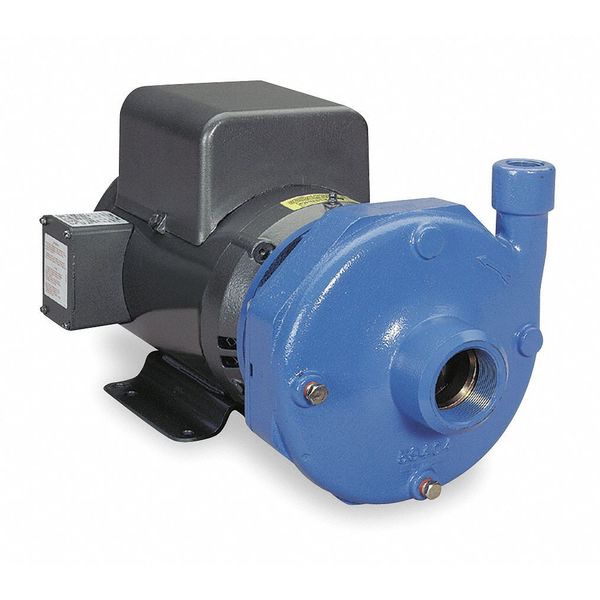

Centrifugal Pump, 10 HP, 125 ft. Max. Head

Goulds Water Technology — Straight Centrifugal High Head Pumps — Centrifugal Pump, 10 HP, 125 ft. Max. Head

This Straight Centrifugal High Head Pumps from Goulds Water Technology supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Max. Case Pressure: 175 psi
• Max. Pressure: 175 psi
• Wetted Materials: 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
• Overall Length: 25.5 in
• Manufacturer Part Number: 4BF1L9E0
• UPC: 697666912374

Product information

• UPC: 697666912374
• Country of Origin: United States
• Manufacturer Part Number: 4BF1L9E0

Dimensions

• Inlet Size - Pumps: 3 in NPT
• Outlet Size - Pumps: 2-1/2 in NPT
• Max. Dia. Solids: 7/16 in
• Manufacturers Warranty Length: 1 yr
• Compatible Discharge Pipe Size: 2 1/2 in
• Overall Length: 25.5 in
• Compatible Intake Pipe Size: 3 in
• Solid Diameter (Maximum): 0.44 in
• Manufacturer Warranty Length: 1 yr

Details

• Seal Material: 316 Stainless Steel, Buna Elastomer, Carbon, Ceramic
• Impeller Material: Bronze
• Horsepower: 10 hp
• Pump Housing Material: Cast Iron
• Intake Type: NPT
• Maximum Flow Rate: 260 gpm
• Priming: Manual
• Minimum Flow Rate: 130 gpm
• Frequency: 60 Hz
• Pumping Application: Booster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation
• Maximum Media Temperature: 212 Degrees F
• Maximum RPM: 3,500 RPM
• Seal Type: Mechanical Type 21
• For Use With Potable Systems: Yes
• Impeller Design: Closed
• Standards: ANSI 61, NSF Certified
• Maximum Feet of Head: 125 ft
• Compatible with Media Type: Water
• Flow Rate @ 100 ft of Head (Maximum): 250 gpm
• Shaft Material: Stainless Steel
• Discharge Rotation: 90 Degrees Increments
• Max. Case Pressure: 175 psi
• Max. Pressure: 175 psi
• Wetted Materials: 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
• Item - Straight Centrifugal Pumps: Straight Centrifugal High Head Pump
• Inlet: 3"
• HP: 10
• Hz: 60
• Outlet: 2-1/2"
• Phase: Three

This Straight Centrifugal High Head Pumps is well-suited for replacement, upgrade, and stock-room use.

Recommended for facility operations and routine servicing and selected for dependable day-to-day use.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
