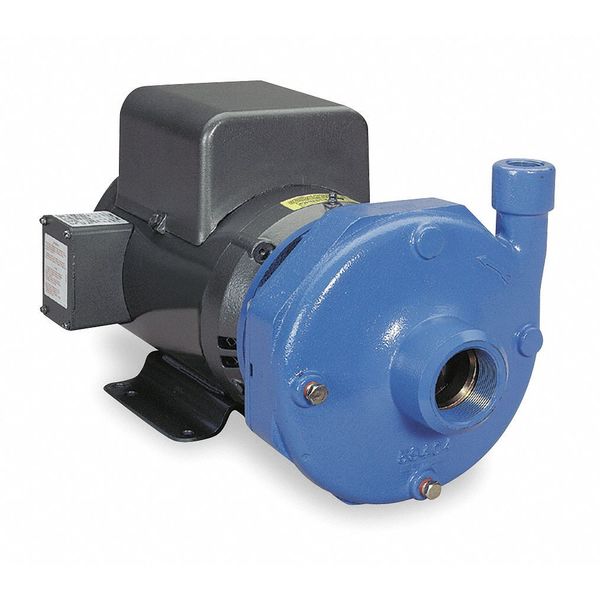

Centrifugal Pump, 3 HP, Max. Head 113 ft.

Goulds Water Technology — Straight Centrifugal High Head Pumps — Centrifugal Pump, 3 HP, Max. Head 113 ft.

Goulds Water Technology Straight Centrifugal High Head Pumps built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Item - Straight Centrifugal Pumps: Straight Centrifugal High Head Pump
• Min. GPM @ Head: 40 @ 110 ft
• GPM of Water @ 70 Ft. of Head: 130
• Length: 18 3/8 in
• Manufacturer Part Number: 3BF1HBC0
• UPC: 697666904423

Product information

• UPC: 697666904423
• Country of Origin: United States
• Manufacturer Part Number: 3BF1HBC0

Dimensions

• Length: 18 3/8 in
• Overall Width: 6.5 in
• Overall Height: 9.2 in
• Compatible Intake Pipe Size: 2 in
• Solid Diameter (Maximum): 0.31 in
• Overall Length: 24.5 in
• Compatible Discharge Pipe Size: 1 1/2 in
• Inlet Size - Pumps: 2 in NPT
• Outlet Size - Pumps: 1-1/2 in NPT
• Height: 8 in
• Width: 10 5/8 in
• Max. Dia. Solids: 5/16 in

Details

• Priming: Manual
• Impeller Design: Closed
• Motor Frame Designation: 145JM
• Flow Rate @ 40 ft of Head (Maximum): 155 gpm
• Wetted Material: 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
• Item - Straight Centrifugal Pumps: Straight Centrifugal High Head Pump
• Min. GPM @ Head: 40 @ 110 ft
• GPM of Water @ 70 Ft. of Head: 130
• Hz: 60
• Port Rotation: 90 Increments
• GPM of Water @ 50 Ft. of Head: 147
• GPM of Water @ 60 Ft. of Head: 140
• Impeller Material: Bronze
• Inlet: 2" NPT
• Max. Specific Gravity: 1
• Pump Housing Material: Cast Iron
• Shaft Material: Stainless Steel
• Best Efficiency Head: 85 ft
• Flow Rate @ 80 ft of Head (Maximum): 120 gpm
• Maximum Feet of Head: 113 ft
• Maximum Flow Rate: 155 gpm
• Shut Off Pressure (Maximum): 175 psi
• Frequency: 60 Hz
• Discharge Type: NPT
• Horsepower: 3 hp
• Series: 3656

This Straight Centrifugal High Head Pumps is intended for professional buyers focused on durability and uptime.

Recommended for production support and bench work and a practical option for maintenance teams and procurement.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
