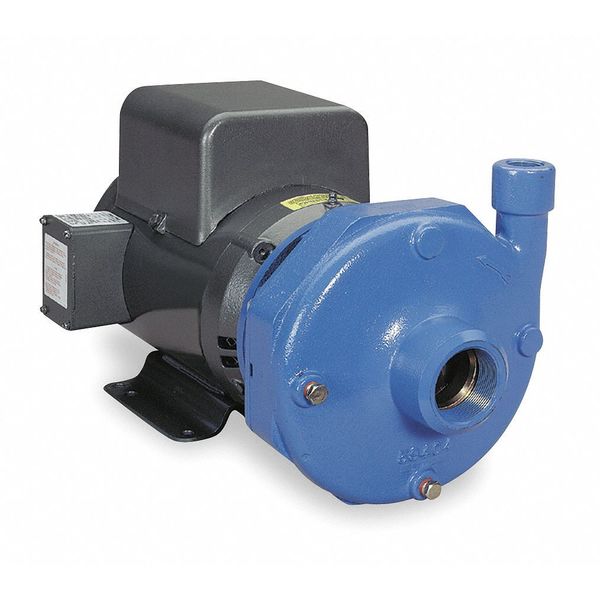

Centrifugal Pump, 3 HP, Max. Head 139 ft.

Goulds Water Technology — Straight Centrifugal High Head Pumps — Centrifugal Pump, 3 HP, Max. Head 139 ft.

Designed for professional use, this Goulds Water Technology Straight Centrifugal High Head Pumps helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Features: Back Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings
• HP: 3
• Seal Material: 316 Stainless Steel, Buna Elastomer, Carbon, Ceramic
• Length: 18 3/8 in
• Manufacturer Part Number: 3BF1HBA0H
• UPC: 697666909909

Product information

• Manufacturer Part Number: 3BF1HBA0H
• UPC: 697666909909
• Country of Origin: United States

Dimensions

• Compatible Discharge Pipe Size: 1 1/2 in
• Compatible Intake Pipe Size: 2 in
• Overall Width: 6.5 in
• Solid Diameter (Maximum): 0.19 in
• Inlet Size - Pumps: 2 in NPT
• Outlet Size - Pumps: 1-1/2 in NPT
• Length: 18 3/8 in
• Width: 10 5/8 in
• Max. Dia. Solids: 3/16 in
• Height: 8 in
• Overall Length: 24.5 in
• Overall Height: 9.2 in

Details

• Max. GPM @ Head: 140 @ 25 ft
• Max. Liquid Temp.: 212 Degrees F
• Wetted Materials: 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
• Best Efficiency Range GPM @ Head: 40 to 100 gpm @ 130 to 60 ft
• Motor Frame Designation: 145JM
• Maximum Media Temperature: 212 Degrees F
• Wetted Material: 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
• Horsepower: 3 hp
• Compatible with Media Type: Water
• Shaft Material: Stainless Steel
• Flow Rate @ 100 ft of Head (Maximum): 93 gpm
• Discharge Type: NPT
• Priming: Manual
• Features: Back Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings
• Pump Housing Material: Cast Iron
• Flow Rate @ 60 ft of Head (Maximum): 122 gpm
• Flow Rate @ 70 ft of Head (Maximum): 115 gpm
• HP: 3
• Seal Material: 316 Stainless Steel, Buna Elastomer, Carbon, Ceramic
• Motor Enclosure: Open Dripproof
• Amps: 9.5-9.0/4.5
• GPM of Water @ 120 Ft. of Head: 67
• Impeller Type: Closed
• Min. GPM @ Head: 40 @132 ft

This Straight Centrifugal High Head Pumps is intended for professional buyers focused on durability and uptime.

Recommended for planned maintenance programs and designed to support reliable operation in demanding environments.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
