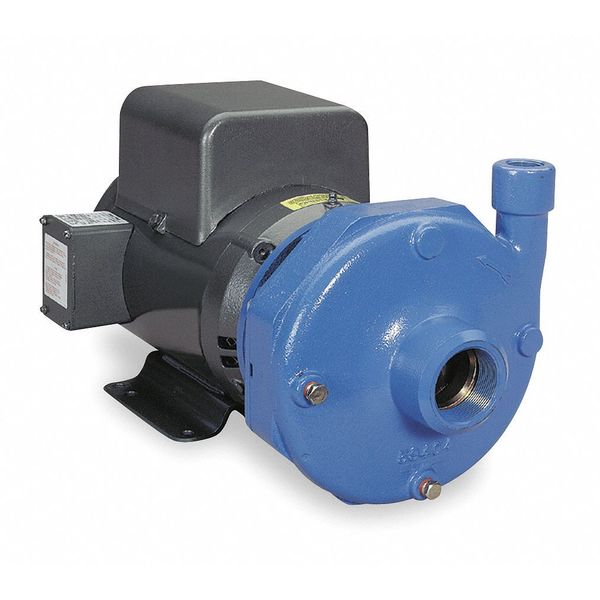

Centrifugal Pump, 5 HP, 180 ft. Max. Head

Goulds Water Technology — Straight Centrifugal High Head Pumps — Centrifugal Pump, 5 HP, 180 ft. Max. Head

A practical Straight Centrifugal High Head Pumps by Goulds Water Technology intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Max. Liquid Temp.: 212 Degrees F
• Motor RPM: 3,500 RPM
• Amps: 12-11.8/5.9
• Overall Length: 25.5 in
• Manufacturer Part Number: 4BF1J9J0
• UPC: 697666912176

Product information

• Country of Origin: United States
• Manufacturer Part Number: 4BF1J9J0
• UPC: 697666912176

Dimensions

• Outlet Size - Pumps: 2-1/2 in NPT
• Manufacturers Warranty Length: 1 yr
• Max. Dia. Solids: 7/16 in
• Solid Diameter (Maximum): 0.44 in
• Overall Length: 25.5 in
• Manufacturer Warranty Length: 1 yr
• Compatible Discharge Pipe Size: 2 1/2 in
• Compatible Intake Pipe Size: 3 in
• Inlet Size - Pumps: 3 in NPT

Details

• Maximum RPM: 3,500 RPM
• Shaft Material: Stainless Steel
• Wetted Material: 316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
• Maximum Feet of Head: 75 ft
• Maximum Media Temperature: 212 Degrees F
• Intake Type: NPT
• Flow Rate @ 70 ft of Head (Maximum): 150 gpm
• Seal Type: Mechanical Type 21
• Horsepower: 5 hp
• Pumping Application: Booster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation
• Discharge Type: NPT
• Pump Housing Material: Cast Iron
• Compatible with Media Type: Water
• Series: 3656
• Standards: ANSI 61, NSF Certified
• Shut Off Pressure (Maximum): 175 psi
• Max. Liquid Temp.: 212 Degrees F
• Motor RPM: 3,500 RPM
• Amps: 12-11.8/5.9
• Item - Straight Centrifugal Pumps: Straight Centrifugal High Head Pump
• Housing Material: Cast iron
• Outlet: 2-1/2" NPT
• Wetted Materials: 303 Stainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
• Item: Centrifugal Pump
• Agency Compliance: NSF 61
• HP: 5
• Motor Type: JM
• Hz: 60
• Voltage: 208-230/460VAC
• Impeller Material: Bronze

This Straight Centrifugal High Head Pumps is a practical option for maintenance teams and procurement.

Recommended for planned maintenance programs and intended for professional buyers focused on durability and uptime.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
