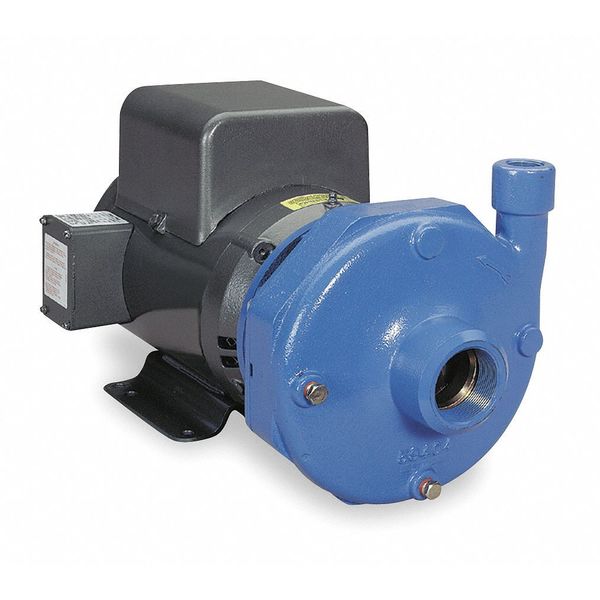

Centrifugal Pump, 7-1/2 HP, 125 ft. Head

Goulds Water Technology — Straight Centrifugal High Head Pumps — Centrifugal Pump, 7-1/2 HP, 125 ft. Head

A practical Straight Centrifugal High Head Pumps by Goulds Water Technology intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Features: Back Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings
• Max. Pressure: 175 psi
• Max. Case Pressure: 175 psi
• Overall Length: 25.5 in
• Manufacturer Part Number: 4BF1KBF0
• UPC: 697666912268

Product information

• UPC: 697666912268
• Country of Origin: United States
• Manufacturer Part Number: 4BF1KBF0

Dimensions

• Manufacturer Warranty Length: 1 yr
• Compatible Discharge Pipe Size: 2 1/2 in
• Overall Height: 10.5 in
• Compatible Intake Pipe Size: 3 in
• Inlet Size - Pumps: 3 in NPT
• Outlet Size - Pumps: 2-1/2 in NPT
• Max. Dia. Solids: 7/16 in
• Manufacturers Warranty Length: 1 yr
• Solid Diameter (Maximum): 0.44 in
• Overall Length: 25.5 in
• Overall Width: 8.6 in

Details

• For Use With Potable Systems: Yes
• Flow Rate @ 100 ft of Head (Maximum): 200 gpm
• Features: Back Pull Out to Reduce Maintenance Down Time, Dynamic Balancing, Renewable Wear Rings
• Intake Type: NPT
• Duty Cycle: Continuous
• Best Efficiency Flow: 195 gpm
• Flow Rate @ 90 ft of Head (Maximum): 250 gpm
• Pump Housing Material: Cast Iron
• Max. Pressure: 175 psi
• Max. Case Pressure: 175 psi
• Motor RPM: 3,500 RPM
• Motor Type: JM
• Item: Centrifugal Pump
• Voltage: 208-230/460VAC
• Amps: 17.2/8.6
• Max. Liquid Temp.: 212 Degrees F
• Max. GPM @ Head: 250 @ 90 ft
• Phase: Three
• Best Efficiency Range GPM @ Head: 125 to 275 gpm @ 102 to 60 ft
• HP: 7-1/2
• Impeller Material: Bronze
• Discharge Rotation: 90 Degrees Increments
• Standards: ANSI 61, NSF Certified
• Minimum Flow Rate: 100 gpm
• Compatible with Media Type: Water
• Maximum RPM: 3,500 RPM

This Straight Centrifugal High Head Pumps is designed to support reliable operation in demanding environments.

Recommended for production support and bench work and a practical option for maintenance teams and procurement.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
