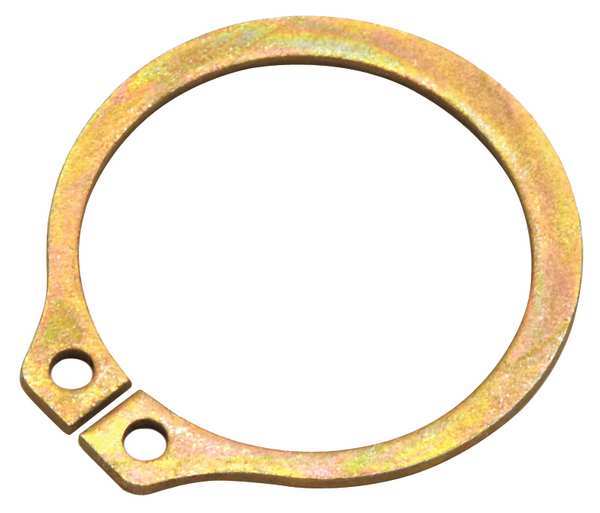

External Retaining Ring, Steel, Yellow Zinc Finish, 5 PK

ROTOR CLIP — External Retaining Rings — External Retaining Ring, Steel, Yellow Zinc Finish, 5 PK

A practical External Retaining Rings by ROTOR CLIP intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Steel
• Finish: Zinc Yellow
• System of Measurement: Inch
• Thickness: 0.093 in
• Manufacturer Part Number: SH-275ST ZD
• UPC: 848790022549

Product information

• UPC: 848790022549
• Country of Origin: United States
• Manufacturer Part Number: SH-275ST ZD

Dimensions

• Clearance Dia. (Expanded): 3.45 in
• Fits Groove Width: 0.103 in
• Fits Groove Depth: 0.074 in
• Hole Dia.: 0.125 in
• Clearance Dia. (Released): 3.31 in
• Clearance Diameter: 3.45 in
• Groove Diameter Tolerance: +/-0.006 in
• Clearance Diameter Type: Expanded
• For Shaft Dia.: 2 3/4 in
• Fits Shaft Diameter: 2-3/4 in
• Fits Groove Diameter: 2.602"
• Thickness: 0.093 in
• Free Inside Diameter: 2.543"
• Groove Width Tolerance: +0.005/-0.000 in

Details

• Rockwell Hardness: RC47-52
• Ring Sub-Type: Standard
• Manufacturer Location: Made in USA*
• Material Quality Standards: ASME
• Material Grade/Class: Ungraded
• Ring Type: External Retaining Ring
• Location Style: External
• Free I.D.: 2.543 in
• Item: Retaining Ring
• Type: External
• Material: Steel
• Finish: Zinc Yellow
• System of Measurement: Inch
• Meets/Exceeds: ASME
• Tensile Strength (PSI): 150,000 psi
• Thickness Tolerance: +/-0.003 in

This External Retaining Rings is designed to support reliable operation in demanding environments.

Recommended for production support and bench work and chosen for predictable fit and professional handling.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
