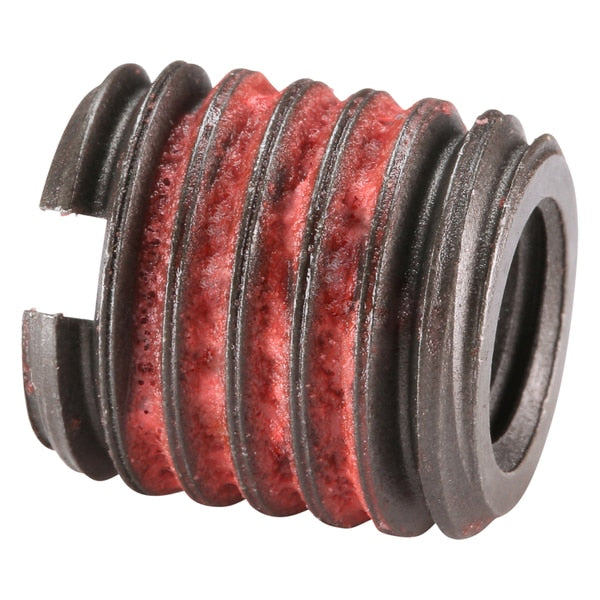

Extra Heavy Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Carbon Steel, 5 PK

E-Z LOK — Self Locking Inserts — Extra Heavy Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Carbon Steel, 5 PK

E-Z LOK Self Locking Inserts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Carbon Steel
• Finish: Black Phosphate
• System of Measurement: Inch
• Overall Length: 21/32 in
• Manufacturer Part Number: 335-6-PK5
• UPC: 839137000863

Product information

• Country of Origin: United States
• Manufacturer Part Number: 335-6-PK5
• UPC: 839137000863

Dimensions

• Minimum Installation Depth: 23/32 in
• Tap Sizes: 5/8-11
• Min. Full Thread Depth: 23/32
• Maximum Hole Diameter: 0.531 in
• Compatible Tap Size: 5/8"-11
• Internal Thread Size: 3/8"-16
• Overall Length: 21/32 in
• Insert Diameter: 5/8 in
• External Thread Size: 5/8"-11
• Drill Bit Size: 17/32 in

Details

• Internal Thread Fit: 2B
• Compatible Material: Metal
• External Thread Fit: 2A
• Tensile Strength: 78,300 psi
• Material Grade/Class: 12L14
• Series: E-Z LOK
• CAD Available: Yes
• Item: Self Locking Thread Insert
• Material: Carbon Steel
• Wall Type: Extra Heavy Wall
• Thread Type: UNC Internal/UNC External
• Installation Method: Screwdriver, Bolt/Nut, or Power Drive Tool
• Tensile Strength (PSI): 78,300 psi
• Power Driver: 4ZE56
• Application: For Use on Metal
• External Thread Class: 2A
• Internal Thread Class: 2B
• Brinell Hardness: 163
• Finish: Black Phosphate
• Features: Pre-Applied Adhesive Activates On Installation, Vibration Resistant
• Thread Direction: Right Hand
• System of Measurement: Inch

This Self Locking Inserts is well-suited for replacement, upgrade, and stock-room use.

Recommended for facility operations and routine servicing and selected for dependable day-to-day use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
