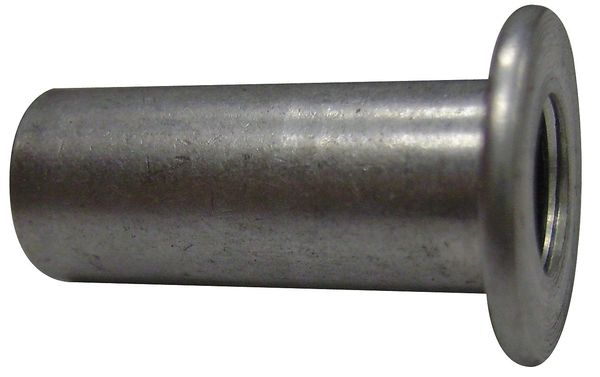

Flanged Rivet Nut, 5/16"-18 Dia./Thread Size, 0.665 in Head Dia., 0.75 in L, Steel, 25 PK

CONTRACTOR SELECT — Rivet Nuts — Flanged Rivet Nut, 5/16"-18 Dia./Thread Size, 0.665 in Head Dia., 0.75 in L, Steel, 25 PK

Designed for professional use, this CONTRACTOR SELECT Rivet Nuts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Zinc Plated
• System of Measurement: Inch
• Overall Length: 0.75 in
• Manufacturer Part Number: U69136.031.0125
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: U69136.031.0125

Dimensions

• Drill Bit Size: Z
• Flange Diameter: 0.665 in
• Insert Diameter: 0.413 in
• Overall Length: 0.75 in
• Hole Size: 0.413 in
• Head Height: 0.062 in
• Maximum Material Thickness: 0.125 in
• Flange Thickness: 0.062 in
• Maximum Hole Diameter: 0.413 in
• Minimum Material Thickness: 0.03 in
• Thread Size: 5/16"-18

Details

• Grip Range: 0.030 in to 0.125 in
• System of Measurement: Inch
• End Type: Open
• Application: Used To Securely Fasten Metals, Fiberglass Or Rigid Plastic Materials By Creating Permanent Threads, Ideal For Materials Considered Too Thin For Tapered Threads
• Thread Type: Coarse
• Pack Size: Small Pack
• Insert Nut Type: Rivet Nut
• Compatible Material: Fiberglass, Metal, Plastic
• CAD Available: Yes
• Item: Rivet Nut
• Flange Style: Flanged
• Material: Steel
• Finish: Zinc Plated

This Rivet Nuts is well-suited for replacement, upgrade, and stock-room use.

Recommended for maintenance and repair workflows and designed to support reliable operation in demanding environments.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
