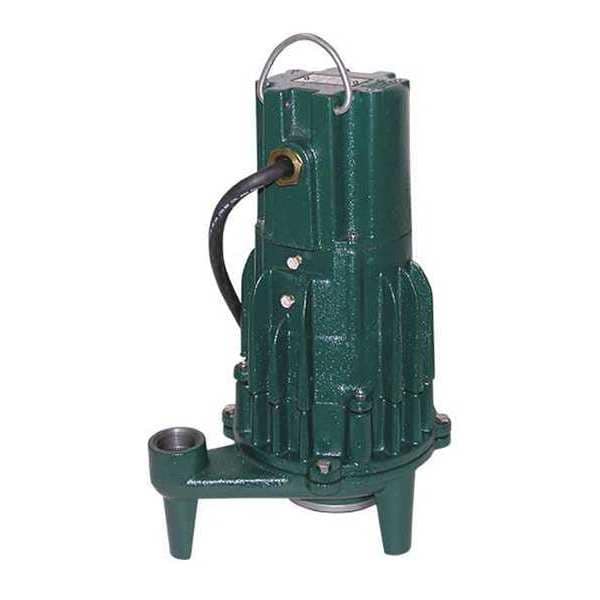

Grinder Pump, 1.5 HP, 208V, CRB/CMC
by ZOELLER
Contact for availability
Original price
$2,202.49
-
Original price
$2,202.49
Original price
$2,202.49
$2,202.49
-
$2,202.49
Current price
$2,202.49
| HP | 1 1/2 hp |
| Phase - Pumps | 1 |
| Switch Actuation | No Switch Included |
| Body Material | Cast Iron |
| Base Material | Cast Iron |
| Flow Rate @ 10 Ft. of Head | 43 gpm |
| Max. Head | 81.0 ft |
| Impeller Material | Engineered Plastic |
| Shaft Seal Material - Pumps | Carbon, Ceramic |
| Item - Grinder Pumps | Grinder Pump |
| GPM of Water @ 60 Ft. of Head | 22 |
| GPM of Water @ 35 Ft. of Head | 41 |
| Amps | 15.5 A |
| GPM of Water @ 70 Ft. of Head | 12 |
| GPM of Water @ 20 Ft. of Head | 43 |
| Shaft Seal | CRB/CMC |
| Pump RPM | 3450 |
| Switch Type - Pumps | No Switch Included |
| Pump HP | 1-1/2 |
| Pump Body Material | Cast Iron |
| GPM of Water @ 40 Ft. of Head | 39 |
| Hz | 60 |
| Max. Head - Pumps | 81 ft. |
| Impeller Material - Pumps | Engineered Plastic |
| GPM of Water @ 55 Ft. of Head | 25 |
| Bearing Type | Ball |
| GPM of Water @ 5 Ft. of Head | 43 |
| Item | Grinder Pump |
| Switch Type | None |
| Max. Liquid Temp. | 130 Degrees F |
| Phase | 1 |
| Motor RPM | 3450 |
| Voltage - Pumps | 208VAC |
| Voltage | 208 |
| Discharge NPT | 1-1/4" |
| Handle | Yes |
| Thermal Protection | Yes |
| Input Phase AC | 1 |
| GPM of Water @ 45 Ft. of Head | 36 |
| GPM of Water @ 50 Ft. of Head | 32 |
| GPM of Water @ 10 Ft. of Head | 43 |
| GPM of Water @ 25 Ft. of Head | 43 |
| GPM of Water @ 30 Ft. of Head | 42 |
| Duty | Intermittent |
| Housing Material | Cast iron |
| Motor Type | CSCR |
| Flow Rate @ 15 Ft. of Head | 43 gpm |
| Rated Voltage | 208V AC |
| Discharge | 1 1/4 in FNPT |
| Flow Rate @ 60 Ft. of Head | 22 gpm |
| Flow Rate @ 20 Ft. of Head | 43 gpm |
| RPM | 3,450 RPM |
| Switch Electrical Connection | No Switch Included |
| Duty Cycle | Intermittent |
| Discharge Standard | NPT |
| Flow Rate @ 40 Ft. of Head | 39 gpm |
| Discharge Gender | Female |
