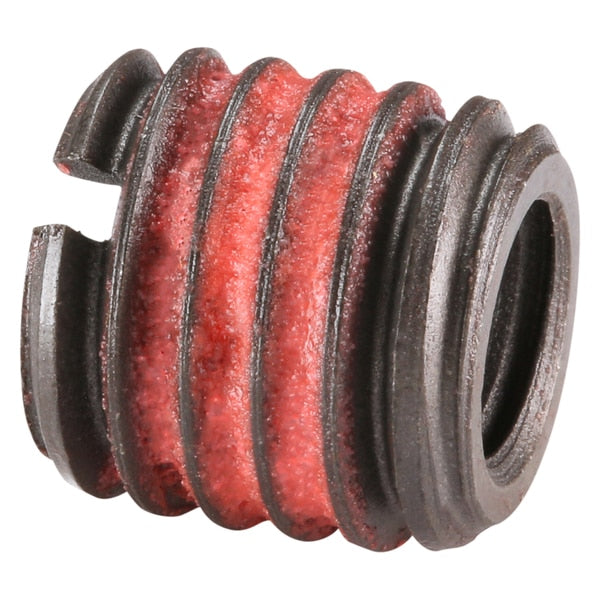

Heavy Wall Self Locking Thread Insert, 5/16"-18 Int Thrd Sz, Carbon Steel, 10 PK

E-Z LOK — Self Locking Inserts — Heavy Wall Self Locking Thread Insert, 5/16"-18 Int Thrd Sz, Carbon Steel, 10 PK

This Self Locking Inserts from E-Z LOK supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Carbon Steel
• Finish: Black Phosphate
• System of Measurement: Inch
• Overall Length: 31/64 in
• Manufacturer Part Number: 329-5-PK10
• UPC: 839137000627

Product information

• Country of Origin: United States
• Manufacturer Part Number: 329-5-PK10
• UPC: 839137000627

Dimensions

• Drill Bit Size: 27/64 in
• Minimum Installation Depth: 9/16 in
• Tap Sizes: 1/2-13
• Min. Full Thread Depth: 9/16
• Compatible Tap Size: 1/2"-13
• Maximum Hole Diameter: 0.422 in
• Internal Thread Size: 5/16"-18
• Overall Length: 31/64 in
• Insert Diameter: 1/2 in
• External Thread Size: 1/2"-13

Details

• System of Measurement: Inch
• Internal Thread Fit: 2B
• Thread Direction: Right Hand
• Material Grade/Class: 12L14
• Compatible Material: Metal
• Full Cure Time: 72 hr
• Series: E-Z LOK
• CAD Available: Yes
• Item: Self Locking Thread Insert
• Material: Carbon Steel
• Wall Type: Heavy Wall
• Thread Type: UNC Internal/UNC External
• Installation Method: Screwdriver, Bolt/Nut, or Power Drive Tool
• Tensile Strength (PSI): 78,300 psi
• Internal Thread Class: 2B
• Application: For Use on Metal
• Brinell Hardness: 163
• Power Driver: 4ZE55
• External Thread Class: 2A
• Finish: Black Phosphate
• Features: Pre-Applied Adhesive Activates On Installation, Vibration Resistant
• Tensile Strength: 78,300 psi
• External Thread Fit: 2A

This Self Locking Inserts is selected for dependable day-to-day use.

Recommended for planned maintenance programs and chosen for predictable fit and professional handling.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
