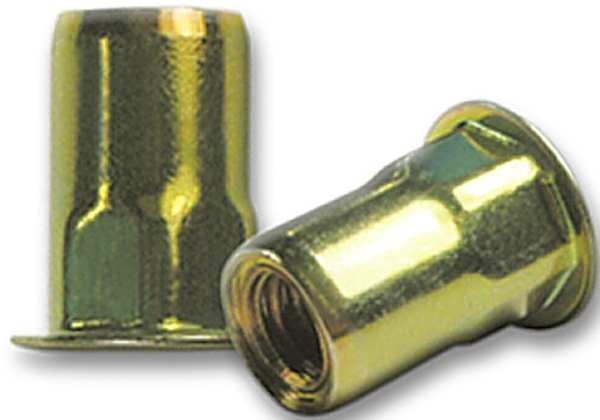

Hex Rivet Nut, 1/4"-20 Dia./Thread Size, 0.51 in Head Dia., 0.585 in L, Steel, 50 PK

CONTRACTOR SELECT — Rivet Nuts — Hex Rivet Nut, 1/4"-20 Dia./Thread Size, 0.51 in Head Dia., 0.585 in L, Steel, 50 PK

CONTRACTOR SELECT Rivet Nuts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Zinc Yellow
• System of Measurement: Inch
• Overall Length: 0.585 in
• Manufacturer Part Number: CAH2-2520-165-50
• UPC: -

Product information

• Manufacturer Part Number: CAH2-2520-165-50
• UPC: -
• Country of Origin: Taiwan, Province of China

Dimensions

• Maximum Material Thickness: 0.165 in
• Thread Size: 1/4"-20
• Drill Bit Size: 3/8"
• Flange Diameter: 0.51 in
• Insert Diameter: 0.374 in
• Overall Length: 0.585 in
• Hole Size: 0.375 in
• Head Height: 0.03 in
• Flange Thickness: 0.03 in
• Maximum Hole Diameter: 0.375 in
• Minimum Material Thickness: 0.027 in
• Installed Length: 13/32 in
• Body Length: 37/64 in

Details

• Material Grade/Class: 1008/1010
• CAD Available: Yes
• Item: Rivet Nut
• Body Texture: Smooth
• Flange Style: Flanged
• Material: Steel
• Finish: Zinc Yellow
• Grip Range: 0.027 in to 0.165 in
• System of Measurement: Inch
• End Type: Open
• Application: Used to Securely Fasten Metals
• Thread Fit: 2B
• Body Type: Hex
• Thread Type: Coarse
• Compatible Material: Metal
• Insert Nut Type: Rivet Nut

This Rivet Nuts is designed to support reliable operation in demanding environments.

Recommended for facility operations and routine servicing and selected for dependable day-to-day use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
