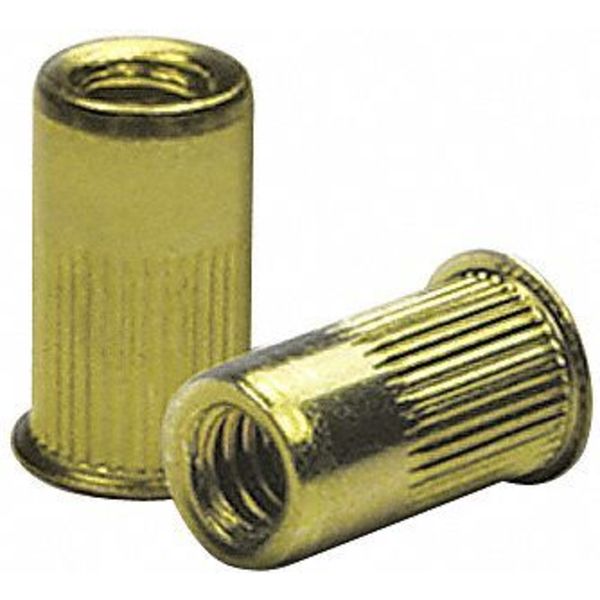

Knurled Flanged Rivet Nut, 5/16"-18 Dia./Thread Size, 0.595 in Head Dia., 0.69 in L, Steel, 25 PK

CONTRACTOR SELECT — Rivet Nuts — Knurled Flanged Rivet Nut, 5/16"-18 Dia./Thread Size, 0.595 in Head Dia., 0.69 in L, Steel, 25 PK

CONTRACTOR SELECT Rivet Nuts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Zinc Yellow
• System of Measurement: Inch
• Overall Length: 0.69 in
• Manufacturer Part Number: CAK2-3118-150-25
• UPC: -

Product information

• UPC: -
• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: CAK2-3118-150-25

Dimensions

• Body Length: 11/16 in
• Maximum Hole Diameter: 0.531 in
• Installed Length: 15/32 in
• Maximum Material Thickness: 0.15 in
• Minimum Material Thickness: 0.027 in
• Flange Thickness: 0.022 in
• Thread Size: 5/16"-18
• Drill Bit Size: 17/32"
• Flange Diameter: 0.595 in
• Insert Diameter: 0.53 in
• Overall Length: 0.69 in
• Hole Size: 0.531 in
• Head Height: 0.022 in

Details

• Body Type: Round
• Material Grade/Class: 1008/1010
• Insert Nut Type: Rivet Nut
• Thread Type: Coarse
• CAD Available: Yes
• Item: Rivet Nut
• Body Texture: Knurled
• Flange Style: Flanged
• Material: Steel
• Finish: Zinc Yellow
• Grip Range: 0.027 in to 0.150 in
• System of Measurement: Inch
• End Type: Open
• Application: Used to Securely Fasten Metals
• Thread Fit: 2B
• Compatible Material: Metal

This Rivet Nuts is chosen for predictable fit and professional handling.

Recommended for planned maintenance programs and designed to support reliable operation in demanding environments.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
