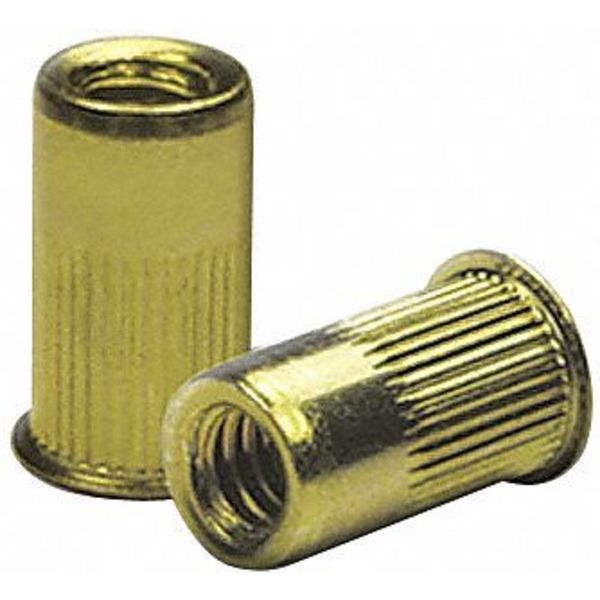

Knurled Flanged Rivet Nut, 5/16"-18 Dia./Thread Size, 0.595 in Head Dia., 0.805 in L, Steel, 25 PK

CONTRACTOR SELECT — Rivet Nuts — Knurled Flanged Rivet Nut, 5/16"-18 Dia./Thread Size, 0.595 in Head Dia., 0.805 in L, Steel, 25 PK

Designed for professional use, this CONTRACTOR SELECT Rivet Nuts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Zinc Yellow
• System of Measurement: Inch
• Overall Length: 0.805 in
• Manufacturer Part Number: CAK2-3118-312-25
• UPC: -

Product information

• Country of Origin: Taiwan, Province of China
• Manufacturer Part Number: CAK2-3118-312-25
• UPC: -

Dimensions

• Minimum Material Thickness: 0.15 in
• Body Length: 13/16 in
• Maximum Hole Diameter: 0.531 in
• Thread Size: 5/16"-18
• Drill Bit Size: 17/32"
• Flange Diameter: 0.595 in
• Insert Diameter: 0.53 in
• Overall Length: 0.805 in
• Hole Size: 0.531 in
• Head Height: 0.022 in
• Maximum Material Thickness: 0.312 in
• Flange Thickness: 0.022 in
• Installed Length: 27/64 in

Details

• Compatible Material: Metal
• Body Type: Round
• Thread Fit: 2B
• Material Grade/Class: 1008/1010
• Insert Nut Type: Rivet Nut
• CAD Available: Yes
• Item: Rivet Nut
• Body Texture: Knurled
• Flange Style: Flanged
• Material: Steel
• Finish: Zinc Yellow
• Grip Range: 0.150 in to 0.312 in
• System of Measurement: Inch
• End Type: Open
• Application: Used to Securely Fasten Metals
• Thread Type: Coarse

This Rivet Nuts is designed to support reliable operation in demanding environments.

Recommended for field service tasks and on-site replacement and selected for dependable day-to-day use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
