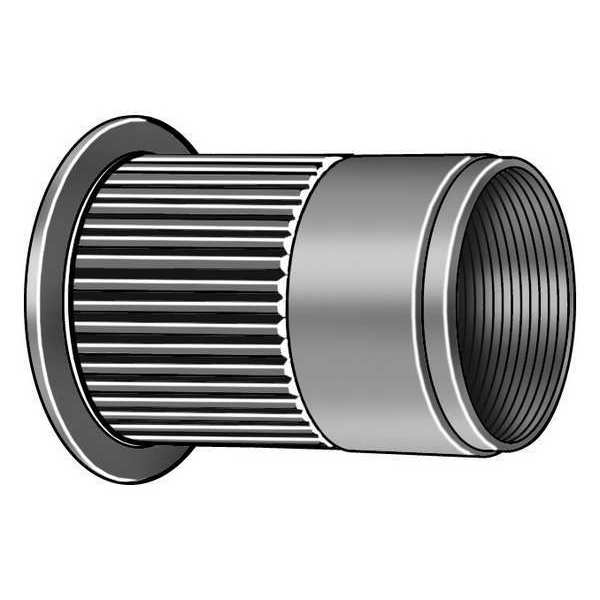

Knurled Flanged Rivet Nut, 5/16"-18 Dia./Thread Size, 0.685 in Head Dia., 0.805 in L, Aluminum

CONTRACTOR SELECT — Rivet Nuts — Knurled Flanged Rivet Nut, 5/16"-18 Dia./Thread Size, 0.685 in Head Dia., 0.805 in L, Aluminum

Designed for professional use, this CONTRACTOR SELECT Rivet Nuts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Aluminum
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 0.805 in
• Manufacturer Part Number: U69315.031.0312
• UPC: -

Product information

• Country of Origin: Multiple
• Manufacturer Part Number: U69315.031.0312
• UPC: -

Dimensions

• Head Height: 0.042 in
• Hole Size: 0.531 in
• Maximum Hole Diameter: 0.531 in
• Flange Thickness: 0.042 in
• Minimum Material Thickness: 0.15 in
• Maximum Material Thickness: 0.312 in
• Thread Size: 5/16"-18
• Drill Bit Size: 17/32"
• Flange Diameter: 0.685 in
• Insert Diameter: 0.53 in
• Overall Length: 0.805 in

Details

• End Type: Open
• Application: Used To Securely Fasten Metals, Fiberglass Or Rigid Plastic Materials By Creating Permanent Threads, Ideal For Materials Considered Too Thin For Tapered Threads
• Compatible Material: Fiberglass, Metal, Plastic
• Pack Size: Small Pack
• Insert Nut Type: Rivet Nut
• Thread Type: Coarse
• CAD Available: Yes
• Item: Rivet Nut
• Body Texture: Knurled
• Flange Style: Flanged
• Material: Aluminum
• Finish: Plain
• Grip Range: 0.150 in to 0.312 in
• System of Measurement: Inch

This Rivet Nuts is intended for professional buyers focused on durability and uptime.

Recommended for production support and bench work and designed to support reliable operation in demanding environments.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
