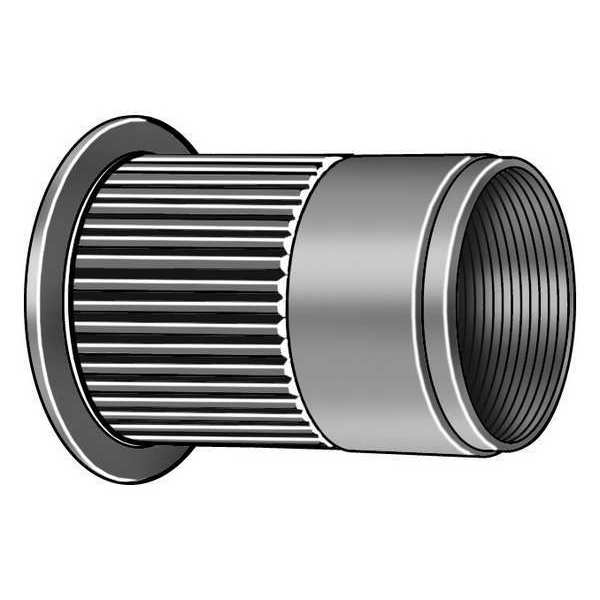

Knurled Flanged Rivet Nut, M8-1.25 Dia./Thread Size, 0.685 in Head Dia., 0.774 in L, Steel, 25 PK

CONTRACTOR SELECT — Rivet Nuts — Knurled Flanged Rivet Nut, M8-1.25 Dia./Thread Size, 0.685 in Head Dia., 0.774 in L, Steel, 25 PK

A practical Rivet Nuts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Steel
• Finish: Zinc Plated
• System of Measurement: Metric
• Overall Length: 0.774 in
• Manufacturer Part Number: M69135.080.0312
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: M69135.080.0312

Dimensions

• Drill Bit Size: 17/32"
• Flange Diameter: 0.685 in
• Insert Diameter: 0.53 in
• Overall Length: 0.774 in
• Head Height: 0.04 in
• Hole Size: 0.53 in
• Flange Thickness: 1.016 mm
• Maximum Hole Diameter: 13.462 mm
• Maximum Material Thickness: 7.9248 mm
• Minimum Material Thickness: 3.81 mm
• Thread Size: M8-1.25

Details

• CAD Available: Yes
• Item: Rivet Nut
• Body Texture: Knurled
• Flange Style: Flanged
• Material: Steel
• Finish: Zinc Plated
• Grip Range: 0.150 in to 0.312 in
• System of Measurement: Metric
• End Type: Open
• Application: Used To Securely Fasten Metals, Fiberglass Or Rigid Plastic Materials By Creating Permanent Threads, Ideal For Materials Considered Too Thin For Tapered Threads
• Insert Nut Type: Rivet Nut
• Thread Type: Coarse
• Compatible Material: Fiberglass, Metal, Plastic
• Pack Size: Small Pack
• Thread Pitch: 1.25 mm

This Rivet Nuts is selected for dependable day-to-day use.

Recommended for maintenance and repair workflows and chosen for predictable fit and professional handling.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
