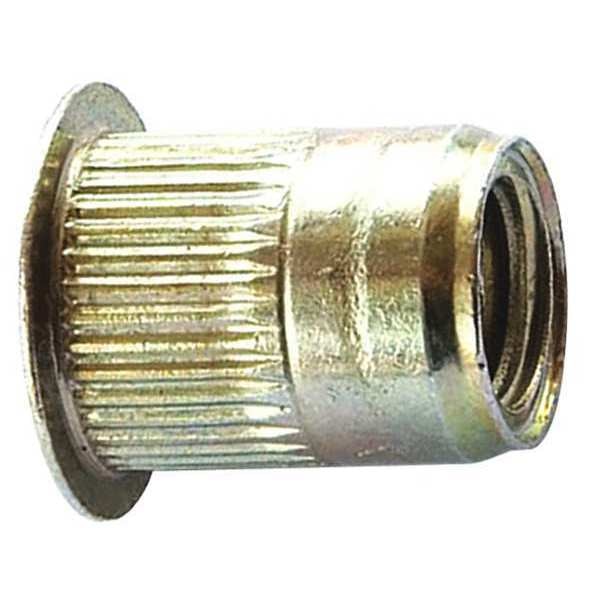

Knurled Rivet Nut, M5-0.80 Dia./Thread Size, 10.54 mm Head Dia., 12.07 mm L, Steel, 25 PK

AVK — Rivet Nuts — Knurled Rivet Nut, M5-0.80 Dia./Thread Size, 10.54 mm Head Dia., 12.07 mm L, Steel, 25 PK

AVK Rivet Nuts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Zinc Yellow
• System of Measurement: Metric
• Overall Length: 12.07 mm
• Manufacturer Part Number: ALS4T-580-3.3
• UPC: -

Product information

• UPC: -
• Country of Origin: United States
• Manufacturer Part Number: ALS4T-580-3.3

Dimensions

• Thread Size: M5-0.80
• Drill Bit Size: 7.6 mm
• Flange Diameter: 10.54 mm
• Insert Diameter: 7.52 mm
• Overall Length: 12.07 mm
• Head Height: 0.76 mm
• Hole Size: 7.6 mm
• Installed Length: 8 mm
• Maximum Material Thickness: 3.3 mm
• Body Length: 12.07 mm
• Minimum Material Thickness: 0.5 mm
• Flange Thickness: 0.76 mm
• Maximum Hole Diameter: 7.6 mm

Details

• CAD Available: Yes
• Item: Rivet Nut
• Body Texture: Knurled
• Flange Style: Flanged
• Material: Steel
• Finish: Zinc Yellow
• Grip Range: 0.50 mm to 3.30 mm
• System of Measurement: Metric
• End Type: Open
• Application: Use In Punched or Drilled Holes In Blind Applications
• Features: Corrosion Resistant
• Material Grade/Class: 1010/1008
• Thread Fit: 6H
• Insert Nut Type: Rivet Nut
• Compatible Material: Metal
• Thread Pitch: 0.8 mm
• Installation Method: Pneumatic/Hydraulic Tool, Spin/Spin ARO Pneumatic Tool
• Manufacturer Location: Made in USA
• Thread Type: Coarse
• Thread Direction: Right Hand
• Body Type: Round

This Rivet Nuts is chosen for predictable fit and professional handling.

Recommended for facility operations and routine servicing and selected for dependable day-to-day use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
