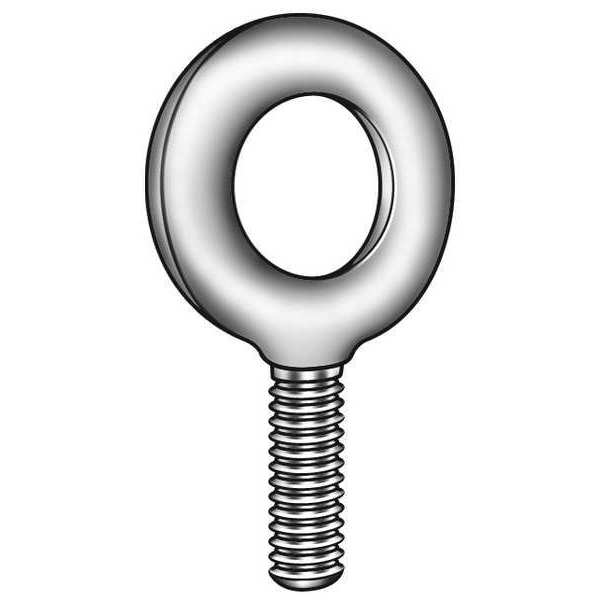

Machinery Eye Bolt With Shoulder, 1/2"-13, 2-1/2 in Shank, 1-3/16 in ID, Steel, Plain

KEN FORGING — Eye Bolts — Machinery Eye Bolt With Shoulder, 1/2"-13, 2-1/2 in Shank, 1-3/16 in ID, Steel, Plain

KEN FORGING Eye Bolts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 4-13/16 in
• Manufacturer Part Number: K2025-B
• UPC: -

Product information

• Manufacturer Part Number: K2025-B
• UPC: -
• Country of Origin: United States

Dimensions

• Overall Length: 4-13/16 in
• Thread Length: 2-1/2"
• Screw Size: 1/2 in
• Shoulder Length: 7/32 in
• Shoulder Diameter: 29/32 in
• Shank Diameter: 1/2 in
• Eye Outside Diameter: 2 1/16 in
• Eye Outside Dia.: 2 1/16 in
• Dia./Thread Size: 1/2"-13
• Shoulder Dia.: 0.88 in to 0.94 in
• Eye Inside Dia.: 1 3/16 in
• Shank Dia.: 1/2 in
• Thread Size: 1/2"-13
• Shank Length: 2-1/2 in
• Eye Inside Diameter: 1-3/16 in

Details

• Finish: Plain
• Working Load Limit: 2,400 lb
• Application: Lifting
• Eyebolt Type: Lift with Shoulder
• Type: Lift with Shoulder
• Includes Nut: No
• Eye Closure: Closed
• Material Quality Standard: ASTM A489
• Standards: ASME B18.15
• Globally Sourced: Made in USA*
• Thread Type: Coarse
• Pack Size: Small Pack
• Manufacturer Location: Made in USA*
• Material Quality Standards: ASTM A489
• Drive Type: No Drive
• Working Load Limit - Force: 2,400 lbf
• Material Grade/Class: C1030/C1035
• Shoulder Style: With Shoulder
• System of Measurement: Inch
• Material: Steel

This Eye Bolts is selected for dependable day-to-day use.

Recommended for production support and bench work and designed to support reliable operation in demanding environments.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
