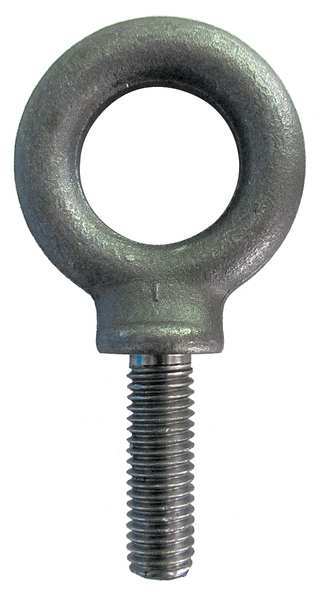

Machinery Eye Bolt With Shoulder, 1/4"-20, 1 in Shank, 3/4 in ID, Steel, Plain

CONTRACTOR SELECT — Eye Bolts — Machinery Eye Bolt With Shoulder, 1/4"-20, 1 in Shank, 3/4 in ID, Steel, Plain

Designed for professional use, this CONTRACTOR SELECT Eye Bolts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 2-7/32 in
• Manufacturer Part Number: U16000.025.0100
• UPC: -

Product information

• UPC: -
• Country of Origin: Multiple
• Manufacturer Part Number: U16000.025.0100

Dimensions

• Shoulder Length: 5/32 in
• Eye Outside Diameter: 1 3/16 in
• Shank Diameter: 1/4 in
• Shoulder Diameter: 17/32 in
• Dia./Thread Size: 1/4"-20
• Eye Outside Dia.: 1 3/16 in
• Eye Inside Dia.: 3/4 in
• Shank Dia.: 1/4 in
• Shoulder Dia.: 0.50 in to 0.56 in
• Thread Size: 1/4"-20
• Shank Length: 1 in
• Eye Inside Diameter: 3/4 in
• Overall Length: 2-7/32 in
• Thread Length: 1"
• Screw Size: 1/4 in

Details

• Eye Closure: Closed
• Globally Sourced: Globally Sourced
• Manufacturer Location: Globally Sourced
• Drive Type: No Drive
• Thread Style: Fully Threaded
• Dimensional Standards: ASME B18.15
• Working Load Limit - Force: 500 lbf
• CAD Available: Yes
• Item: Eye Bolt
• Shoulder Style: With Shoulder
• System of Measurement: Inch
• Material: Steel
• Finish: Plain
• Working Load Limit: 500 lb
• Application: Lifting
• Eyebolt Type: With Shoulder
• Type: With Shoulder
• Pack Size: Small Pack
• Thread Type: Coarse
• Includes Nut: No

This Eye Bolts is well-suited for replacement, upgrade, and stock-room use.

Recommended for production support and bench work and chosen for predictable fit and professional handling.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
