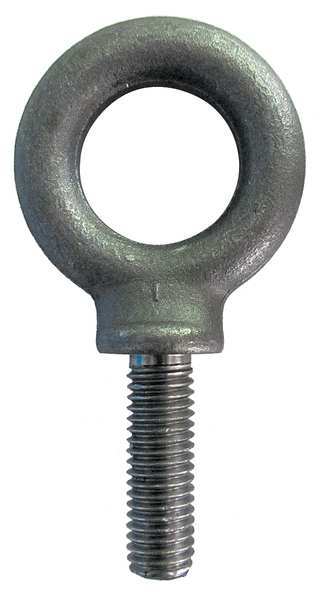

Machinery Eye Bolt With Shoulder, 3/4"-10, 1-1/2 in Shank, 1-1/2 in ID, Steel, Plain

CONTRACTOR SELECT — Eye Bolts — Machinery Eye Bolt With Shoulder, 3/4"-10, 1-1/2 in Shank, 1-1/2 in ID, Steel, Plain

A practical Eye Bolts by CONTRACTOR SELECT intended for repeatable results in shop, facility, and field workflows.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 4-9/16 in
• Manufacturer Part Number: U16000.075.0150
• UPC: -

Product information

• Manufacturer Part Number: U16000.075.0150
• UPC: -
• Country of Origin: Multiple

Dimensions

• Dia./Thread Size: 3/4"-10
• Shoulder Dia.: 1.12 in to 1.25 in
• Shank Dia.: 3/4 in
• Eye Inside Dia.: 1 1/2 in
• Thread Size: 3/4"-10
• Shank Length: 1-1/2 in
• Eye Inside Diameter: 1-1/2 in
• Overall Length: 4-9/16 in
• Thread Length: 1-1/2"
• Screw Size: 3/4 in
• Shoulder Length: 9/32 in
• Eye Outside Diameter: 2 13/16 in
• Shank Diameter: 3/4 in
• Shoulder Diameter: 1-3/16 in
• Eye Outside Dia.: 2 13/16 in

Details

• Working Load Limit: 5,000 lb
• Application: Lifting
• Eyebolt Type: With Shoulder
• Type: With Shoulder
• Thread Type: Coarse
• Pack Size: Small Pack
• Globally Sourced: Globally Sourced
• Eye Closure: Closed
• Includes Nut: No
• Manufacturer Location: Globally Sourced
• Drive Type: No Drive
• Thread Style: Fully Threaded
• Dimensional Standards: ASME B18.15
• Working Load Limit - Force: 5,000 lbf
• CAD Available: Yes
• Item: Eye Bolt
• Shoulder Style: With Shoulder
• System of Measurement: Inch
• Material: Steel
• Finish: Plain

This Eye Bolts is well-suited for replacement, upgrade, and stock-room use.

Recommended for production support and bench work and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
