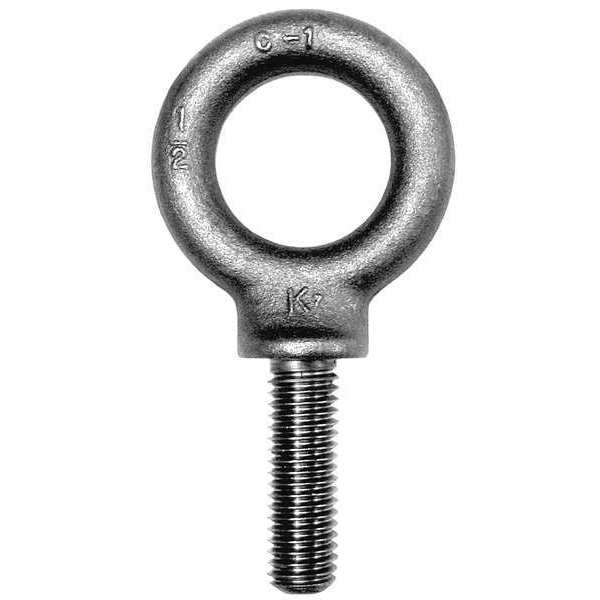

Machinery Eye Bolt With Shoulder, 3/8"-16, 5/8 in Shank, 1 in ID, Steel, Plain

KEN FORGING — Eye Bolts — Machinery Eye Bolt With Shoulder, 3/8"-16, 5/8 in Shank, 1 in ID, Steel, Plain

Designed for professional use, this KEN FORGING Eye Bolts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 2-15/32 in
• Manufacturer Part Number: K2023-AA
• UPC: -

Product information

• Manufacturer Part Number: K2023-AA
• UPC: -
• Country of Origin: United States

Dimensions

• Shoulder Diameter: 21/32 in
• Eye Outside Dia.: 1 21/32 in
• Dia./Thread Size: 3/8"-16
• Eye Inside Dia.: 1 in
• Shank Dia.: 3/8 in
• Shoulder Dia.: 0.62 in to 0.69 in
• Thread Size: 3/8"-16
• Shank Length: 5/8 in
• Eye Inside Diameter: 1 in
• Overall Length: 2-15/32 in
• Thread Length: 5/8"
• Screw Size: 3/8 in
• Shoulder Length: 5/32 in
• Shank Diameter: 3/8 in
• Eye Outside Diameter: 1 21/32 in

Details

• Drive Type: No Drive
• Thread Style: Fully Threaded
• Working Load Limit - Force: 1,300 lbf
• Shoulder Style: With Shoulder
• System of Measurement: Inch
• Material: Steel
• Finish: Plain
• Working Load Limit: 1,300 lb
• Application: Lifting
• Eyebolt Type: Lift with Shoulder
• Type: Lift with Shoulder
• Eye Closure: Closed
• Material Quality Standard: ASTM A489
• Globally Sourced: Made in USA*
• Pack Size: Small Pack
• Standards: ASME B18.15
• Includes Nut: No
• Thread Type: Coarse
• Manufacturer Location: Made in USA*
• Material Quality Standards: ASTM A489

This Eye Bolts is a practical option for maintenance teams and procurement.

Recommended for inventory replenishment and standardization and selected for dependable day-to-day use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
