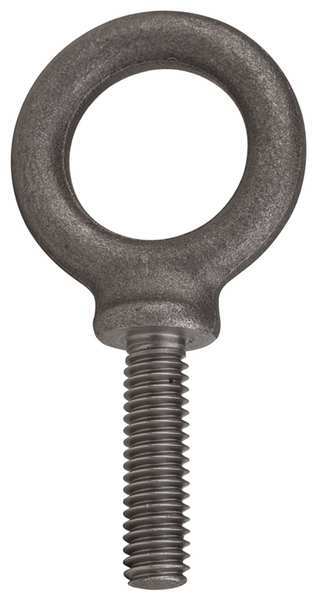

Machinery Eye Bolt With Shoulder, 5/16"-18, 1-1/8 in Shank, 7/8 in ID, Steel, Plain

KEN FORGING — Eye Bolts — Machinery Eye Bolt With Shoulder, 5/16"-18, 1-1/8 in Shank, 7/8 in ID, Steel, Plain

Designed for professional use, this KEN FORGING Eye Bolts helps keep parts and tooling consistent across routine service tasks.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 2-21/32 in
• Manufacturer Part Number: K2022
• UPC: -

Product information

• UPC: -
• Country of Origin: United States
• Manufacturer Part Number: K2022

Dimensions

• Overall Length: 2-21/32 in
• Thread Length: 1-1/8"
• Screw Size: 5/16 in
• Shoulder Length: 5/32 in
• Shank Diameter: 5/16 in
• Eye Outside Diameter: 1 7/16 in
• Shoulder Diameter: 19/32 in
• Eye Outside Dia.: 1 7/16 in
• Dia./Thread Size: 5/16"-18
• Eye Inside Dia.: 7/8 in
• Shank Dia.: 5/16 in
• Shoulder Dia.: 0.56 in to 0.62 in
• Thread Size: 5/16"-18
• Shank Length: 1-1/8 in
• Eye Inside Diameter: 7/8 in

Details

• Type: Lift with Shoulder
• Includes Nut: No
• Pack Size: Small Pack
• Standards: ASME B18.15
• Thread Type: Coarse
• Eye Closure: Closed
• Dimensional Standards: ASME B18.15
• Globally Sourced: Made in USA*
• Material Quality Standard: ASTM A489
• Manufacturer Location: Made in USA*
• Material Quality Standards: ASTM A489
• Drive Type: No Drive
• Working Load Limit - Force: 900 lbf
• Shoulder Style: With Shoulder
• System of Measurement: Inch
• Material: Steel
• Finish: Plain
• Working Load Limit: 900 lb
• Application: Lifting
• Eyebolt Type: Lift with Shoulder

This Eye Bolts is chosen for predictable fit and professional handling.

Recommended for production support and bench work and selected for dependable day-to-day use.

Highlights

• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
