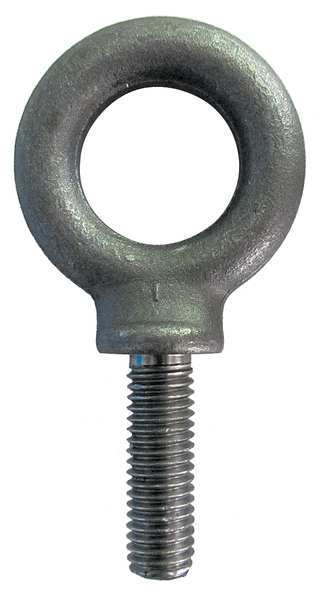

Machinery Eye Bolt With Shoulder, 5/8"-11, 3 in Shank, 1-3/8 in ID, Steel, Plain

CONTRACTOR SELECT — Eye Bolts — Machinery Eye Bolt With Shoulder, 5/8"-11, 3 in Shank, 1-3/8 in ID, Steel, Plain

CONTRACTOR SELECT Eye Bolts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 5-13/16 in
• Manufacturer Part Number: U16000.062.0300
• UPC: -

Product information

• Manufacturer Part Number: U16000.062.0300
• UPC: -
• Country of Origin: Multiple

Dimensions

• Thread Size: 5/8"-11
• Shank Length: 3 in
• Eye Inside Diameter: 1-3/8 in
• Overall Length: 5-13/16 in
• Thread Length: 3"
• Screw Size: 5/8 in
• Shoulder Length: 9/32 in
• Shoulder Diameter: 1-1/32 in
• Shank Diameter: 5/8 in
• Eye Outside Diameter: 2 1/2 in
• Dia./Thread Size: 5/8"-11
• Eye Outside Dia.: 2 1/2 in
• Eye Inside Dia.: 1 3/8 in
• Shank Dia.: 5/8 in
• Shoulder Dia.: 1.00 in to 1.06 in

Details

• Thread Style: Fully Threaded
• Dimensional Standards: ASME B18.15
• CAD Available: Yes
• Item: Eye Bolt
• Shoulder Style: With Shoulder
• System of Measurement: Inch
• Material: Steel
• Finish: Plain
• Working Load Limit: 4,000 lb
• Application: Lifting
• Eyebolt Type: With Shoulder
• Type: With Shoulder
• Pack Size: Small Pack
• Globally Sourced: Globally Sourced
• Eye Closure: Closed
• Includes Nut: No
• Thread Type: Coarse
• Manufacturer Location: Globally Sourced
• Drive Type: No Drive
• Working Load Limit - Force: 4,000 lbf

This Eye Bolts is chosen for predictable fit and professional handling.

Recommended for inventory replenishment and standardization and chosen for predictable fit and professional handling.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
