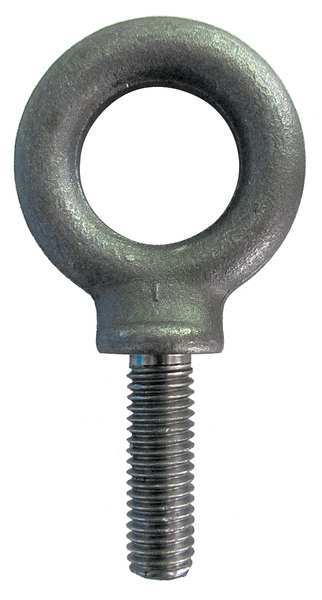

Machinery Eye Bolt With Shoulder, M20-2.50, 57.5 mm Shank, 41 mm ID, Steel, Plain

CONTRACTOR SELECT — Eye Bolts — Machinery Eye Bolt With Shoulder, M20-2.50, 57.5 mm Shank, 41 mm ID, Steel, Plain

CONTRACTOR SELECT Eye Bolts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Metric
• Overall Length: 146.1 mm
• Manufacturer Part Number: M16001.200.0001
• UPC: -

Product information

• UPC: -
• Country of Origin: China
• Manufacturer Part Number: M16001.200.0001

Dimensions

• Eye Inside Dia.: 41 mm
• Shoulder Dia.: 33.30 to 36.60mm
• Thread Size: M20-2.50
• Shank Length: 57.5 mm
• Eye Inside Diameter: 41 mm
• Overall Length: 146.1 mm
• Thread Length: 57.3 mm
• Screw Size: M20
• Shoulder Length: 8.8 mm
• Shank Diameter: 20 mm
• Eye Outside Diameter: 81 mm
• Shoulder Diameter: 34.93 mm
• Eye Outside Dia.: 81.0 mm
• Dia./Thread Size: M20-2.50
• Shank Dia.: 20 mm

Details

• Working Load Limit - Force: 2,860 kgf
• Item: Eye Bolt
• Shoulder Style: With Shoulder
• System of Measurement: Metric
• Material: Steel
• Finish: Plain
• Working Load Limit: 2,860 kg
• Application: Lifting
• Eyebolt Type: With Shoulder
• Type: With Shoulder
• Thread Type: Coarse
• Includes Nut: No
• Pack Size: Small Pack
• Globally Sourced: Globally Sourced
• Thread Style: Fully Threaded
• Eye Closure: Closed
• Manufacturer Location: Globally Sourced
• Drive Type: No Drive

This Eye Bolts is a practical option for maintenance teams and procurement.

Recommended for facility operations and routine servicing and designed to support reliable operation in demanding environments.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
