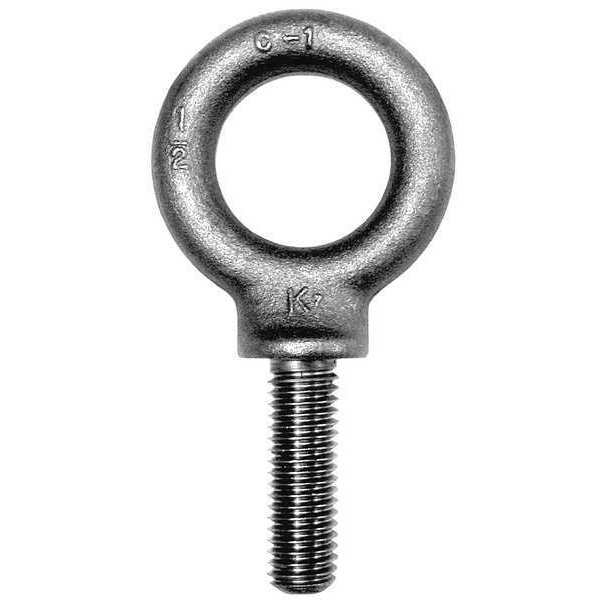

Machinery Eye Bolt With Shoulder, M22-2.50, 63.5 mm Shank, 46 mm ID, Steel, Plain

KEN FORGING — Eye Bolts — Machinery Eye Bolt With Shoulder, M22-2.50, 63.5 mm Shank, 46 mm ID, Steel, Plain

This Eye Bolts from KEN FORGING supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Metric
• Overall Length: 174.6 mm
• Manufacturer Part Number: M22
• UPC: -

Product information

• Manufacturer Part Number: M22
• UPC: -
• Country of Origin: United States

Dimensions

• Shoulder Dia.: 38.10 to 41.15mm
• Eye Inside Dia.: 46 mm
• Shank Dia.: 22 mm
• Thread Size: M22-2.50
• Shank Length: 63.5 mm
• Eye Inside Diameter: 46 mm
• Overall Length: 174.6 mm
• Thread Length: 63.5 mm
• Screw Size: M22
• Shoulder Length: 10.415 mm
• Shoulder Diameter: 39.6 mm
• Shank Diameter: 22 mm
• Eye Outside Diameter: 90 mm
• Eye Outside Dia.: 90.4 mm
• Dia./Thread Size: M22-2.50

Details

• Working Load Limit: 2,860 kg
• Application: Lifting
• Eyebolt Type: Lift with Shoulder
• Type: Lift with Shoulder
• Eye Closure: Closed
• Includes Nut: No
• Globally Sourced: Made in USA*
• Pack Size: Small Pack
• Thread Type: Coarse
• Manufacturer Location: Made in USA*
• Drive Type: No Drive
• Material Grade/Class: C1030/C1035
• Working Load Limit - Force: 2,860 kgf
• Material Quality Standards: ASTM A489
• Shoulder Style: With Shoulder
• System of Measurement: Metric
• Material: Steel
• Finish: Plain

This Eye Bolts is chosen for predictable fit and professional handling.

Recommended for planned maintenance programs and designed to support reliable operation in demanding environments.

Highlights

• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.
• Designed for professional use where predictable fit and handling are important.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
