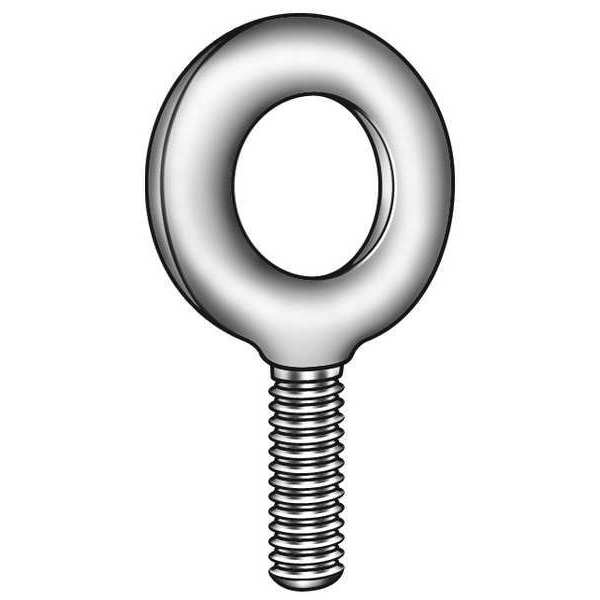

Machinery Eye Bolt Without Shoulder, 5/8"-11, 1-3/4 in Shank, 1-3/8 in ID, Steel, Plain

KEN FORGING — Eye Bolts — Machinery Eye Bolt Without Shoulder, 5/8"-11, 1-3/4 in Shank, 1-3/8 in ID, Steel, Plain

KEN FORGING Eye Bolts built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Material: Steel
• Finish: Plain
• System of Measurement: Inch
• Overall Length: 4-3/16 in
• Manufacturer Part Number: K2007
• UPC: -

Product information

• Country of Origin: United States
• Manufacturer Part Number: K2007
• UPC: -

Dimensions

• Thread Length: 1-3/4"
• Screw Size: 5/8 in
• Shank Diameter: 5/8 in
• Eye Outside Diameter: 2 1/2 in
• Dia./Thread Size: 5/8"-11
• Eye Outside Dia.: 2 1/2 in
• Shank Dia.: 5/8 in
• Eye Inside Dia.: 1 3/8 in
• Thread Size: 5/8"-11
• Shank Length: 1-3/4 in
• Eye Inside Diameter: 1-3/8 in
• Overall Length: 4-3/16 in

Details

• Pack Size: Small Pack
• Material Quality Standard: ASTM A489
• Dimensional Standards: ASME B18.15
• Thread Type: Coarse
• Includes Nut: No
• Eye Closure: Closed
• Manufacturer Location: Made in USA*
• Material Quality Standards: ASTM A489
• Drive Type: No Drive
• Thread Style: Fully Threaded
• Working Load Limit - Force: 3,000 lbf
• Material Grade/Class: C1030/C1035
• CAD Available: Yes
• Item: Eye Bolt
• Shoulder Style: Without Shoulder
• System of Measurement: Inch
• Material: Steel
• Finish: Plain
• Working Load Limit: 4,000 lb
• Application: Lifting
• Eyebolt Type: Lift without Shoulder
• Type: Lift without Shoulder
• Globally Sourced: Made in USA*
• Standards: ASME B18.15

This Eye Bolts is well-suited for replacement, upgrade, and stock-room use.

Recommended for production support and bench work and chosen for predictable fit and professional handling.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
