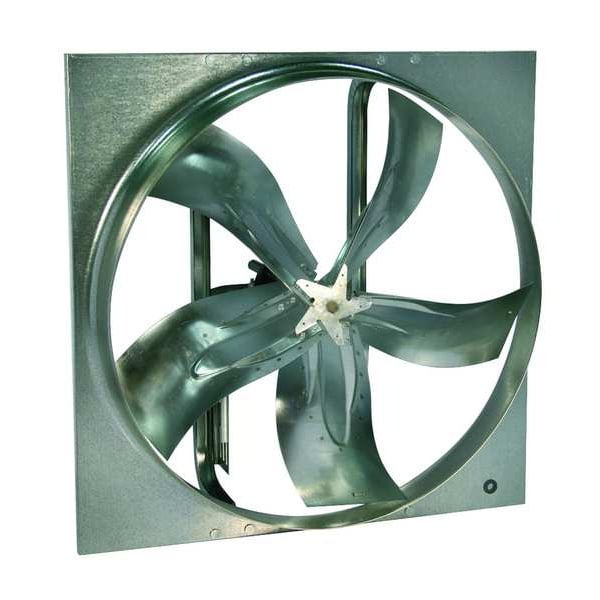

Med Duty Fan, 66,186 cfm, 208-230/460V

Med Duty Fan

by DAYTON
Contact for availability
$3,185.64 - $3,185.64
$3,185.64
$6,757.68
$6,757.68 - $6,757.68
$6,757.68
Availability:
Contact for availability
Mfr # 7M872
Exhaust/Supply Fan Item Exhaust Fan
Exhaust/Supply Fan Motor HP 10 hp
Drive Package With Motor Included Yes
Voltage 208-230/460
Sones @ 0.000-In. SP @ 5 Ft. 70
Assembled/Unassembled Unassembled
Wall Collar Stock No. 1WBV8
CFM @ 0.375-In. SP 52,318 cfm
Includes Drive Package
Propeller Material Galvanized Steel
CFM @ 0.125-In. SP 61,929 cfm
Intake Guard No. 1WBU9
Max. BHP 11.5 hp
Mounting Position Horizontal or Vertical
Frame Material Steel
Fan RPM 496
Item Exhaust Fan with Drive Package
Drive Package Included Yes
Motorized Wall Galv. Shutter Stock No. 3C733
Sones @ 0.250-In. SP @ 5 Ft. 62
Motor Enclosure Open Dripproof
CFM @ 0.250-In. SP 57,516 cfm
Hz 60 Hz
Max. Inlet Temp. 104 Degrees F
Bearing Type Regreasable Pillow Block
Weatherhood No. 1WBW6
Full Load Amps 26.9-24.3/12.2
Galvanized Wall Shutter No. 3C733
Fan Voltage 208-230/460V AC
Motor Insulation Class F
Motor RPM 1,750 RPM
Motor Type 3-Phase
Phase 3
CFM @ 0.000-In. SP 66,186 cfm
Stock No. 1AHA7
Number of Blades 5
Motor Horsepower 10 hp
Exhaust Airflow @ 0.250 in SP 57,516 cfm
Fan Style Panel
Blade Finish Galvanized
Full Load Current 27.4 A
Number of Shutters 0
Noise Level @ 0.000 in SP @ 5 ft 70 sones
Frequency 60 Hz
Blade Material Steel
Maximum Noise Level 70 sones
Number of Fans 1
Maximum Airflow 66,186 cfm
Number of Speeds 1
Nominal Voltage 230/460V AC
Includes Motor Yes
Square Opening Required Greater than 30 in
Includes Dehumidistat No
Includes Grill No
Motor Speed 1,770 RPM
Standards AMCA, UL/cUL
Motor Enclosure Design Open Dripproof (ODP)
Nameplate Voltage 230/460V AC
Ventilation Type Exhaust
Maximum Inlet Temperature 104 Degrees F
Mounting Orientation Horizontal, Vertical
Guard Type None
Maximum Noise Level @ 0.000 in SP @ 5 ft Greater than 50 sones
Noise Level @ 0.125 in SP @ 5 ft 66 sones
Motor Speed Range 1601 to 1800 RPM
Exhaust Airflow @ 0.125 in SP 61,929 cfm
Exhaust Airflow @ 0.375 in SP 52,318 cfm
Maximum Exhaust Airflow @ 0.000 in SP Greater than 50,000 cfm
Exhaust Airflow @ 0.000 in SP 66,186 cfm
Assembled Unassembled
Drive Type Belt Drive
Vent Design Ductless
Speed Controllable No
Enclosure Design Open Dripproof Motor
