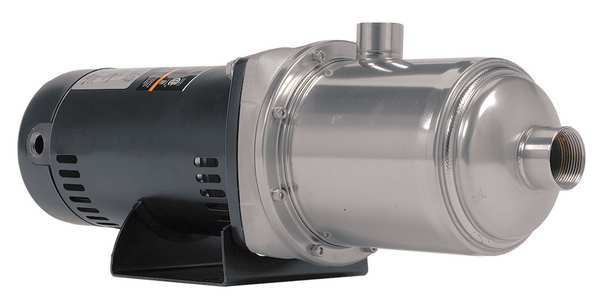

Multi-Stage Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in NPT Inlet Size, 4 Stage

Franklin Electric — Booster Pumps — Multi-Stage Booster Pump, 1 1/2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in NPT Inlet Size, 4 Stage

Franklin Electric Booster Pumps built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Impeller Design: Closed
• Flow Rate @ 60 psi: 31 gpm
• Mounting Orientation: Horizontal
• Length: 20 11/16 in
• Manufacturer Part Number: 96063012
• UPC: -

Product information

• UPC: -
• Country of Origin: Mexico
• Manufacturer Part Number: 96063012

Dimensions

• Inlet Diameter: 1 1/4 in
• Discharge Diameter: 1 in
• Inlet Size - Pumps: 1-1/4 in NPT
• Outlet Size - Pumps: 1 in NPT
• Length: 20 11/16 in
• Height: 8 in
• Width: 7 in
• Manufacturers Warranty Length: 1 yr
• Compatible Intake Pipe Size: 1 1/4 in
• Manufacturer Warranty Length: 2 yr
• Intake Size: 1 1/4 in
• Overall Height: 8 in
• Overall Width: 7 in
• Compatible Discharge Pipe Size: 1 in
• Overall Length: 20.7 in

Details

• Intake Type: NPT
• Impeller Design: Closed
• Flow Rate @ 60 psi: 31 gpm
• Mounting Orientation: Horizontal
• Shut Off Pressure (Maximum): 93 psi
• Horsepower: 1 1/2 hp
• Standards: ANSI 372, cCSAus Listed, UL 778
• Maximum Media Temperature: 225 Degrees F
• Compatible with Media Type: Water
• Nameplate Voltage: 208-230/460V AC
• Feet of Head (Minimum): 35 ft of head
• Flow Rate @ 40 psi: 39 gpm
• Pump Housing Material: Stainless Steel
• Flow Rate @ 20 psi: 44 gpm
• Duty Cycle: Continuous
• Maximum Feet of Head: 210 ft of head
• Flow Rate @ 80 psi: 16 gpm
• Suction Lift (Maximum): 10 ft
• Flow Rate @ 30 psi: 42 gpm
• Frequency: 60 Hz

This Booster Pumps is chosen for predictable fit and professional handling.

Recommended for facility operations and routine servicing and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
