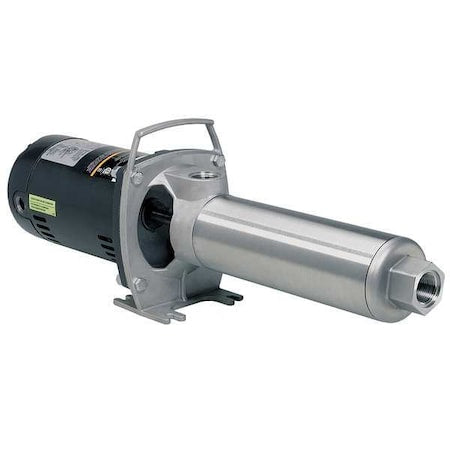

Multi-Stage Booster Pump, 3 hp, 208 to 240V AC, 1 Phase, 1 in NPT Inlet Size, 13 Stage

Multi-Stage Booster Pump, 3 hp, 208 to 240V AC, 1 Phase, 1 in NPT Inlet Size, 13 Stage

by Franklin Electric
Contact for availability
$2,789.99 - $2,789.99
$2,789.99
$2,789.99 - $2,789.99
$2,789.99
Availability:
Contact for availability
Booster Pump Type Multi-Stage Booster Pump
Item Multi-Stage Booster Pump
HP - Pumps 3 hp
Voltage - Pumps 208 to 240V AC
Phase - Pumps 1
Number of Stages - Pumps 13
Max. Pressure - Pumps 206 psi
Housing Material - Pumps Stainless Steel
Motor Enclosure - Pumps Open Dripproof
Voltage 208/230
Inlet 1" FNPT
Outlet 1" FNPT
Pump Mounting Position Horizontal
Hz 60
Motor Ambient Temp. Rating 40 Degrees C
Max. PSI Boost @ 20 GPM 168
Motor Type Capacitor-Start
Seal Material Stainless Steel, Viton and Carbon/Ceramic
Max. Pressure 206 psi
Phase 1
Best Efficiency GPM @ PSI 25 @ 142
Suction Lift 10 ft
Motor RPM 3,450 RPM
Duty Continuous
Agency Compliance cCSAus
Motor Enclosure ODP
Bearing Type Ball
HP 3
Impeller Type Closed
Housing Material Stainless Steel
Frame 56Y
Max. Liquid Temp. 120 Degrees F
Max. PSI Boost @ 2-10 GPM 200 psi @ 10 gpm
Impeller Material Celcon
Wetted Materials Buna, Carbon, Cast Iron, Ceramic, Engineered Composite, Stainless Steel
Stages 13
Max. Case Pressure 375 psi
Amps 13.7-11.4
Max. PSI Boost @ 30 GPM 107
Includes Manual
Motor Frame Designation Y56Y
For Use With Systems Potable
Flow Rate @ 200 psi 10 gpm
Horsepower 3 hp
Flow Rate @ 60 psi 36 gpm
Flow Rate @ 40 psi Not Applicable
Flow Rate @ 80 psi 34 gpm
Feet of Head (Minimum) 110 ft of head
Discharge Type NPT
Flow Rate @ 50 psi 37 gpm
Case Pressure (Maximum) 375 psi
For Use With Potable Systems Yes
Pump Housing Material Cast Iron
Maximum RPM 3,450 RPM
Compatible with Media Type Water
Flow Rate @ 180 psi 17 gpm
Best Efficiency Pressure 142 psi
Motor Enclosure Type ODP
Impeller Design Closed
Series BT4
Flow Rate @ 140 psi 25 gpm
Maximum Feet of Head 475 ft of head
Number of Stages 13
Standards cCSAus Listed
Flow Rate @ 120 psi 29 gpm
Maximum Flow Rate 25 gpm
Flow Rate @ 160 psi 21 gpm
Suction Lift (Maximum) 10 ft
Thermal Overload Protection Yes
Motor Ambient Temperature (Minimum) 40 Degrees F
Mounting Orientation Horizontal
Maximum Media Temperature 120 Degrees F
Priming Manual
Nameplate Voltage 230V AC
Wetted Material Buna, Carbon, Cast Iron, Ceramic, Stainless Steel
Pumping Application Boosting Water Pressure from City Mains or Private Water Systems, Evaporative Cooling System Misters Water Circulation, Filtration, General Purpose Plumbing, Lawn and Crop Irrigation, Poultry Houses, Pressure Washing Buildings and Floors, Reverse Osmosis, Spray Cooling Equipment
Motor Ambient Temperature (Maximum) 104 Degrees F
Shut Off Pressure (Maximum) 205 psi
Duty Cycle Continuous
Frequency 60 Hz
Intake Type NPT
Pressure Boost (Maximum) 200 psi
Flow Rate @ 100 psi 32 gpm
Flow Rate @ 30 psi Not Applicable
Flow Rate @ 20 psi Not Applicable
Nominal Voltage 230V AC
