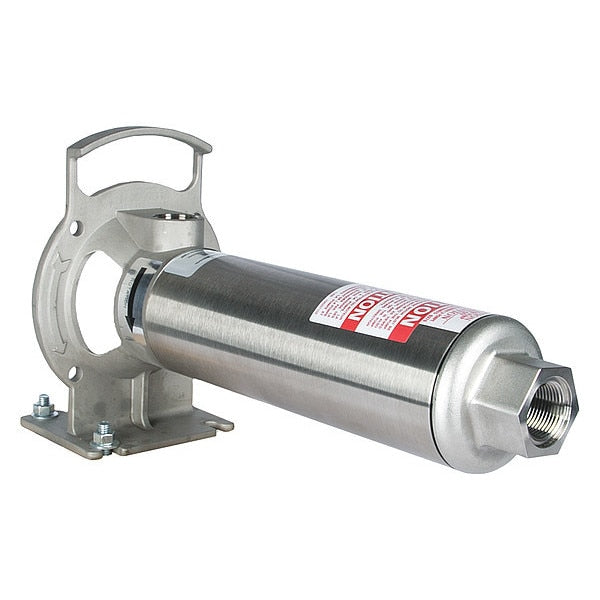

Multi-Stage Booster Pump, 3 hp, 240V AC, 1 in NPT Inlet Size, 13 Stage, 206 psi Max Pressure

Franklin Electric — Booster Pumps — Multi-Stage Booster Pump, 3 hp, 240V AC, 1 in NPT Inlet Size, 13 Stage, 206 psi Max Pressure

Franklin Electric Booster Pumps built for consistent performance in maintenance, inspection, and replacement work.

Quick specs

• Suction Lift: 10 ft
• Max. PSI Boost @ 2-10 GPM: 200 psi @ 10 gpm
• Motor Enclosure: Open Dripproof (ODP)
• Length: 23 21/32 in
• Manufacturer Part Number: 95922513
• UPC: 101210051674

Product information

• Manufacturer Part Number: 95922513
• UPC: 101210051674
• Country of Origin: Mexico

Dimensions

• Width: 6 1/2 in
• Overall Width: 6.5 in
• Compatible Discharge Pipe Size: 1 in
• Compatible Intake Pipe Size: 1 in
• Manufacturer Warranty Length: 1 yr
• Intake Size: 1 in
• Overall Length: 23.66 in
• Overall Height: 9.09 in
• Inlet Size - Pumps: 1 in NPT
• Outlet Size - Pumps: 1 in NPT
• Height: 9 3/64 in
• Manufacturers Warranty Length: 1 yr
• Length: 23 21/32 in

Details

• Flow Rate @ 60 psi: 36 gpm
• Series: BT4
• Flow Rate @ 160 psi: 21 gpm
• Flow Rate @ 100 psi: 32 gpm
• Maximum Flow Rate: 20 gpm
• Priming: Manual
• Suction Lift (Maximum): 10 ft
• Wetted Material: Carbon, Cast Iron, Ceramic, Stainless Steel, Viton
• Flow Rate @ 180 psi: 17 gpm
• Shut Off Pressure (Maximum): 205 psi
• Suction Lift: 10 ft
• Max. PSI Boost @ 2-10 GPM: 200 psi @ 10 gpm
• Motor Enclosure: Open Dripproof (ODP)
• Phase: Single
• Best Efficiency Pressure: 142 psi
• Flow Rate @ 120 psi: 29 gpm
• For Use With Potable Systems: Yes
• Case Pressure (Maximum): 375 psi
• Thermal Overload Protection: Yes
• Flow Rate @ 200 psi: 10 gpm
• Flow Rate @ 80 psi: 34 gpm
• Maximum Feet of Head: 475 ft of head
• Flow Rate @ 50 psi: 37 gpm
• Compatible with Media Type: Water

This Booster Pumps is designed to support reliable operation in demanding environments.

Recommended for planned maintenance programs and well-suited for replacement, upgrade, and stock-room use.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Verify measurement standards, tolerances, and compatibility with existing assemblies before purchase.
