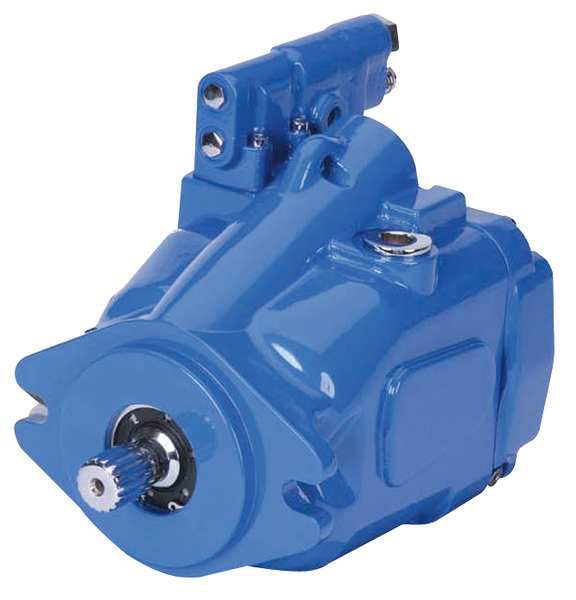

Piston Pump, 4.88 cu. in./rev, 44 gpm

VICKERS — Piston Pumps — Piston Pump, 4.88 cu. in./rev, 44 gpm

This Piston Pumps from VICKERS supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Item: Open Circuit Piston Pump
• Displacement: 4.88 cu in/rev
• Max. Continuous PSI: 3,000
• Shaft Size: 12/24 Spline
• Manufacturer Part Number: 421AK01014B
• UPC: -

Product information

• UPC: -
• Country of Origin: India
• Manufacturer Part Number: 421AK01014B

Dimensions

• Shaft Size: 12/24 Spline
• Discharge Connection Size: 1 in
• Media Intake Connection Size: 2 in

Details

• Displacement: 4.88 cu in/rev
• Max. Continuous PSI: 3,000
• Shaft Rotation: Right
• Shaft Type: Spline
• Max. Power: 82.7 hp
• Mount Type: 2_1_4 Bolt SAE_C
• Max. RPM: 3,600 RPM
• Flow Rate: 44 gpm
• Application: Backhoes, Dump Truck Lifts, Pavers, Cranes, Cable Plows, Mining Machinery
• Inlet Port: 2 in CD 61 Flange
• Pressure Compensator Setting: 3000-3100 lbf/sq in
• Flow Compensator Setting: 180-220 lbf/sq in
• Controller Type: Pressure Flow Compensator With # 4 SAE O-Ring Load Sense Port
• Outlet Port: 1 in CD 61 Flange
• Shaft Seal: Polyacrylate
• Port Location: Rear
• Max. Intermittent Pressure: 3,335
• Special Features: Quiet Pump And Compact Design
• Min. RPM: 600 RPM
• Continuous Pressure - Maximum: 3,050 psi
• Displacement per Revolution: 4.8 cu in/rev
• Motor Speed - Minimum: 600 RPM
• Media Intake Connection Type: SAE Code 61 Flange
• Number of Shaft Teeth: 14
• Pressure Compensator Setting - Maximum: 3,100 lbf/sq in
• Horsepower - Maximum: 82 7/10 hp
• Motor Speed - Maximum: 3,600 RPM
• Intermittent Pressure - Maximum: 3,335 psi
• Flow Compensator Setting - Maximum: 220 lbf/sq in
• Discharge Connection Type: SAE Code 61 Flange
• Shaft Seal Material: Viton
• Flow Rate - Maximum: 44 gpm
• Rotation: CW
• Item: Open Circuit Piston Pump

This Piston Pumps is designed to support reliable operation in demanding environments.

Recommended for field service tasks and on-site replacement and selected for dependable day-to-day use.

Highlights

• Designed for professional use where predictable fit and handling are important.
• Works well in standardized part lists and preventative maintenance schedules.
• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.

Notes: Review application constraints and installation requirements to ensure the part meets your needs.
