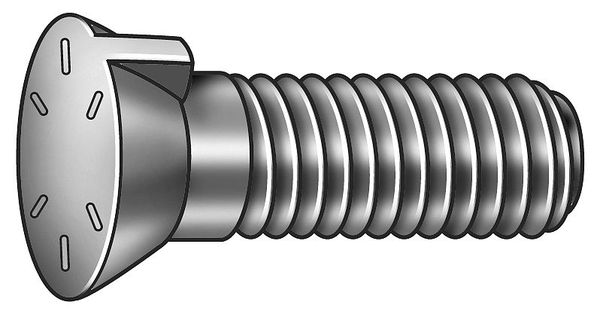

Plow Bolt, Plain, 1-8x3, Gr 8

CONTRACTOR SELECT — Plow Bolts — Plow Bolt, Plain, 1-8x3, Gr 8

This Plow Bolts from CONTRACTOR SELECT supports day-to-day operations where predictable fit and dependable handling matter.

Quick specs

• Material Grade/Class: Grade 8
• Thread Direction: Right Hand
• Thread Type: UNC
• Overall Length: 3 in
• Manufacturer Part Number: 1CGE1
• UPC: -

Product information

• Country of Origin: Multiple
• Manufacturer Part Number: 1CGE1
• UPC: -

Dimensions

• Fastener Length: 3 in
• Key Height: 15/32 in
• Head Height: 39/64 in
• Key Width: 0.19 in
• Head Dia.: 1.634 in
• Embedded Length: 3 in
• Screw Size: 1 in
• Embedded Head and Neck Height: 39/64 in
• Head Width: 1 in
• Overall Length: 3 in
• Maximum Head Height: 39/64 in
• Maximum Head Width: 1 in
• Neck Width: 3/16 in
• Thread Size: 1"-8

Details

• Head Style: Flat
• Fastener Industry Standards: SAE J-429
• Item: Plow Bolt
• Meets/Exceeds: SAE J 429
• Head Angle (Deg.): 60
• Head Type: #7 with Locking Key
• Tensile Strength (PSI): SAE J 429
• Thread Pitch: 1"-8
• Globally Sourced: Globally Sourced
• Standards: ASME B18.9 SAE J429
• Rockwell Hardness: HRC33
• Tensile Strength: 150,000 psi
• Material Quality Standard: SAE J429
• Thread Style: Fully Threaded
• Neck Type: Key-Locking
• Dimensional Standards: ASME B18.9
• Pack Size: Small Pack
• Maximum Head Angle: 60 Degrees
• Manufacturer Location: Globally Sourced
• Material Grade/Class: Grade 8
• Thread Direction: Right Hand
• Thread Type: UNC

This Plow Bolts is designed to support reliable operation in demanding environments.

Recommended for field service tasks and on-site replacement and selected for dependable day-to-day use.

Highlights

• Clear specification formatting helps reduce ordering mistakes.
• Organized for straightforward purchasing and stocking.
• Suitable for maintenance, repair, and project-based procurement.
• Helps keep specifications consistent across replacements and replenishment cycles.

Notes: Confirm fit, compatibility, and any site-specific requirements prior to ordering or installation.
